PLASTIC CARD PRODUCTION

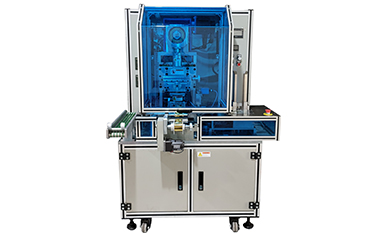

LUK-CHS-8000S
Presentation: High Speed and accurate hologram hot stamping machine
Advantage: High Speed, Accuracte, Stable and Easy Operation
Application: Card manufacturers
Brochure Download:Download
Contact Us

    Overview:

    Hot-Stamping machine is the key equipment for the plastic cards production on the Hologram or Signature Panel making process. Combined advanced mechanical technology and design, now we are offering you the top-class Hot-Stamping system according to your request!

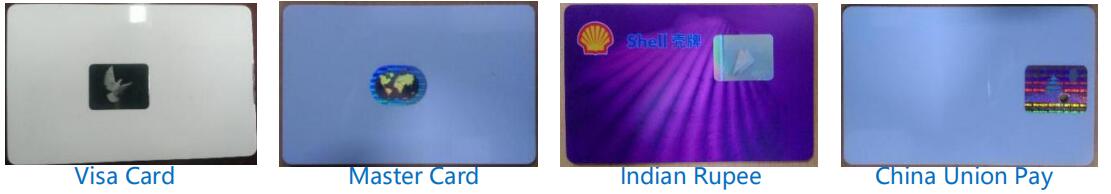

    The proven quality leads the most banking card manufacturers from China are using this machine instead of foreign brands now.  More overseas card factories are benefitting from it.

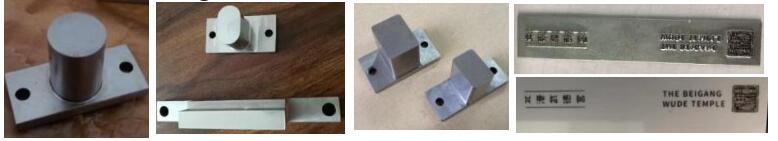

    We can customize the different shape hot-stamping head for your various holograms and signature panel production, not only for Visa/MasterCard cards.


    Applications:

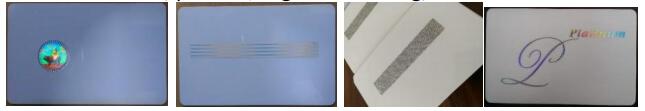

    Designed to hot stamp “Holographic anti-counterfeit label”, “Signature panel”, “Gold/silver/color of pattern/LOGO/text”, “Scratch label”, “Bronzing/silvering on the embossed convex numbers” on plastic card surface. They can hot stamp hologram label and signature panel for credit cards, such as VISA, MASTER, JCB, UnionPay, RuPay.



    Features:

    ￭ Automatic card hot stamping system for holograms, signature panels,scratch-off labels, positive/negative lettering,etc.

    ￭ Easy & quick change tools


    ￭ Changeable stamping head for various foil widths
    ￭ Micro adjusting of hot stamping depth
    ￭ Adjustable hot stamping temperature depending on the foil size an card type
    ￭ The hot stamping head is able to stamp on different positions of the card by adjusting the X axes and Y axes.
    ￭ Highly accurate stamping positioning system
    The material unwind and rewind are able to control foil material tension
    By brake devices for precise positioning;
    Adjustable pitch or print mark registration:
    Di-Soric fiber optic sensor is adopted to recognize sensor marks on hologram foil strip precisely.
    ￭ One hot stamping unit, extension to two stamping units on request
    ￭ Completed CE safety guards


    Specification:

    Model CHS-8000S
    Stamping Type
    		 Flat
    Station QTY
    		 1
    Card Materials
    		 PVC,ABS, Teslin,PC,PETG, Hardpaper, etc.
    Card Size
    		 CR80;others on request
    Card Thickness
    		 0.7-0.9mm; others on request
    Stamping Drive
    		 Servo system
    Stamping Pressure
    		 ≤500kg, adjustable
    Compressed Air
    		 0.6MPa
    Heating Temperature
    		 ≤200ºC,adjustable
    Temperature Accuracy
    		 ±1.0ºC
    Stamp ing Position Accuracy
    		 ±0.15mm
    Foil Position Accuracy
    		 ±0.15mm
    Power Supply
    		 AC380V /AC220V 50-60Hz
    Power
    		 2.0kw
    Output(cards/hour)
    		 2800-4800
    Machine Size
    		 L1200 x W1100 x H1600 mm
    Gross Weight
    		 580kg
