Inlay & Contaless Card Production
LUK-CHP-5000W

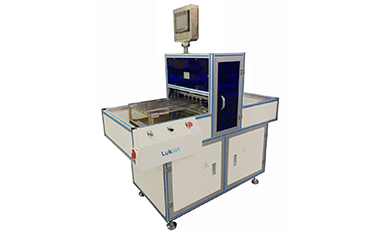

Presentation: Automatic Chip Hole Punching Machine
Advantage: Flexible, Precise, Stable & Easy Operation
Application: Designed for punching chip holes into the PVC/ABS/PETG sheets
Brochure Download:Download
Contact Us
    Overview:
    5000W is automatic chip hole punching machine. It is designed to punch the chip holes on PVC, PETG and ABS sheets with different thickness & size for implanting built-in chip modules on contactless /RF inlay sheets.

    Control by PLC + servo system and holes are punched by high precision mould, which ensure the quality of the products and improve the productivity.

    Machine safety cover is designed to make sure the safety performance of the equipment and better protect the operator’s  safety during operation.


    Features:

    ￭ User friendly touch screen control for easy operation
    ￭ Adjustable feeding speed by modifying PLC parameter
    ￭ Adjustable hole punching position
    ￭ PLC+servo system for precise positioning and position precision ±0.01mm
    ￭ Precise punching die and PLC servo system for good punching quality
    ￭ Lifetime of punching die:upto two million times
    ￭ Locked production cabinet for the safety of the operator
    ￭ CE completed safety guards


    Specification:

    Model
    		 CHP-5000W
    Applicable Material
    		 0.1-0.3mm thickness PVC, PETG, ABS material
    Control Method
    		 PLC+ Servo Positioning
    Air Pressure
    		 6kg/cm2
    Position Precision
    		 ±0.01mm
    Yield Rate
    		 99.9%
    Power
    		 220V,50-60Hz, 0.50kw
    Gross Weight 900kg
    Dimension(mm) L1500x W700 x H1400
