Inlay & Contaless Card Production

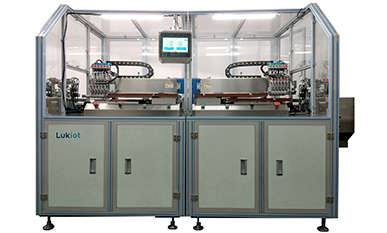

LUK-MP4000
Presentation: Patented Design & High Quality Module Pick & Placer
Advantage: High Speed, Precise, Stable & Easy Operation
Application: Applicable for precisely implanting the single chip onto chip fixing hole in the pvc sheet automatically after antenna embedding
Brochure Download:Download
Contact Us
    Overview:
    MP4000 is designed for  precisely implanting the single chip onto chip fixing hole in the pvc sheet automatically after antenna embedding.

    This machine is automatically controlled by PLC program for easy operation and maintenance.

    Vibration disc automatic feeding , chips will be conveyed to fixed place.High-precise dual-axles are controlled by PLC to pick and place the chips on X/Y place precisely. Photoelectric sensors is adopted to monitor and control
    the chips' feeding. Machine will alarm and stop automatically when errors happens.

    Features:

    ￭ User friendly PLC control for easy operation
    ￭ Vibration disc automatic feeding , positive or negative chip filling identification, automatic bad chip elimination.
    ￭ High accurate PLC dual-axles system is adopted for precise picking & placing the chips on right place automatically.
    ￭ The position for single chip where to be placed can be adjusted easily in the software.
    ￭ Double working stations  and double placers can be working at the same time or separately
    ￭ Different sheet layout , such  as 5x5, 3x8, 4x8 layout ,etc. can be proceeded with the same machine
    ￭ Photoelectric sensors is used to monitor and control the chips' feeding.
    Machine will alarm and stop automatically when errors happens.
    ￭ Optional function: the machine can be designed with extra function of glue tape dispensing

    ￭ CE completed safety guards

    Specification:

    Model
    		 LUK-MP4000
    Control Method
    		 Mitsubishi PLC control+servo system
    Applicable Material
    		 PVC, ABS,PETG,etc. sheet material
    Available Sheet Layout
    		 5x5, 3x8, 4x8,
    customized layout is acceptable
    Air Pressure
    		 6kg/cm2
    Placing Position Accuracy
    		 X/Y= ±0.0125mm
    Power supply
    		 220V,50-60Hz, 2.5kw
    Output
    		 4000 pcs /hour
    Gross Weight
    		 1000kg
    Dimensions
    		 L1800xW800xH1800mm
    Yield Rate
    		 99.9%
