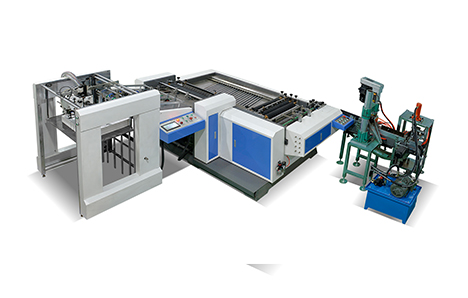

Playing Card Matching Machine
LUK-PF760D/1040D
Presentation: Automatic & Ideal Machine for Paper Cards with Holes
Advantage: Superior Quality, High precision and High stability
Application: Card Manufacturer or Printing Company
Brochure Download:Download
Contact Us

    Overview：

    The automatic cards matching machine developed by our company is mainly used for cutting,

    stacking and die cutting of all kinds of card paper and playing card paper.
    It is not only efficient, but also has high precision. It can cut cards and playing cards of different

    specifications, and ensure that the printing sequence remains unchanged.


    It is an ideal equipment for professional card manufacturing.
    The internal electrical components of the machine are Schneider products imported from France,

    and the whole process is automatic: automatic conveyor, automatic vertical and horizontal slitting，

    automatic folding, automatic card sorting, equipment integration of light, electricity and gas, safe operation

    and stable performance.


    Features:

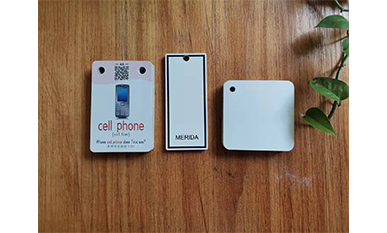

    ￭ Ideal machine for making professional paper cards with holes in bulk quantity

    ￭ Fully automatic one, automatic sheet feeding, automatic vertical & horizontal slitting into small

    cards,automatic card collecting in order,etc.

    ￭ Humanized design for easy operation

    ￭ Sheet Layout can be customized

    ￭ Ouput: around 2000 big sheets/hour

    ￭ Customer can add function of card counting & card packing based on actual marketing needs.


    Specification:

    Model LUK-PF760D lLUK-PF1040D
    Max. paper size
    		 760X600mm 1040×720 mm
    Min. paper size 450x550mm 720×560 mm
    Max. card size 110x110mm 140×140 mm ( with holes)
    Min card size 80x80mm 80×80 mm
    Paper thickness 250-800g/m2 250-800 g/m2
    Best machine speed 2000-2500 big sheets/hour 1700-2100 big sheets/ hour
    Machine Power 380V, 7KW 380V. 8.9kw
    Packing Size 3250×4350×1400mm
    		 5020×5230×1950mm
    Weight 3500kg 4000kg





Contact us
* Name:
Company:
* Email:
* Tel:
Country:
* Message:
Those Might Attract You
LUK-UTA2000
Designed to weld the lanyards and the hooks
Ultrasonic welding with good-looking welding effect
Cost effective one with stable performances
Easy mould adjusting & changing
Single column electric lifting fuselage, easy and convenient operation
This machine has higher speedthan sewing machine or clamping machine
LUK-RC100
Automatic hot cutting with perfect cutting effect
Cutting speed for lanyard with 50mm length: 80-20 times per minute
Automatic stop when no material feeding
Cutting length ,width,quantity,speed will be adjustable
Matched with automatic alarm device & blanket autoamtic adjustment
Labour saving, one machine can save around 5-8 human labour cost
LUK-RH600
Designed to print the lanyards by printed transfer paper
Single-side printing and double-side printing are available at the same time
Max printing width: 600mm
Parallel printing for higher printing precision
Matched with automatic alarm device & blanket automatic adjustment
Speed: 50-100m/piece/hour
LUK-CHS-8000S
Automatic card hot stamping system
Quick change tools
Adjustable stamping position
Highly accurate stamping positioning system
Operator friendly teaching & operation
Up to 4,800 cards per hour
LUK-PCM-12000
Fully automatic playing card punching system
Suitable sheet Material: PVC, ABS, Paper,etc.
Max. sheet size: 720x1000mm
Punching dies will be customized as per customer's sheet size & card size
Punching precision: upto±0.1mm
Output: around 7500 times per hour
LUK-PL25000
Multi-job handling in one batch
Highly efficient personalization line
High flexibility through modular concept
Wide range of encoding formats for UHF, HF or NFC
Up to 25 meters per minute
LUK-CM-90W( Wide Web)
Wide-web solution
Flexible for labels, tickets, hangtags and baggage tags
Highest level of customization
Automatical speed adjustment to track alignment
Flexible for dry and wet inlays
LUK-CM-90N ( Narrow Web)
Designed for RFID label converting and die cutting
Price / Performance leader
Highest level of customization
Flexible for labels, tickets and hangtags
Lowest cost of ownership
LUK-DDA15000
Ideal for regular & irregular web layouts
Cost reduction with fast return of investment
Easy change over different antenna formats
High Efficiency with Yield ≥ 99,7%
Up to 15,000 inlays per hour
LUK-MC230A/320A
Designed for packing various kinds of regular size products by BOPP film
Packing length: 60-160mm; Packing width:30-100mm ; Packing height:10-40mm
High Packing speed ,upto 120 bags per minute
Innovation design with stable performamces
Low noise,CE safety guards
LUK-MC80
Designed for packing various kinds of regular size products by carton,such as game cards, play cards, medicine plates, foods, etc.
Humanzied design for longest life time & easy handling
Packing speed is high,around 80 cartons per minute
High Packing precision with stable performances
Low noise,CE safety guards
LUK-PCM-5000
Semi-auto equipment for cutting cards from printing sheet in order
Manual sheet feeding, but card cutting automatically
Shear-type male & female die sets for clean and smooth card edges
Side stopper positioning for easy operation
Output: around 400-600 big sheets per hour, depending on material & layout
LUK-ASC5000
Automatic high speed sheet collating system
Feeding of overlay from reel
High-precision alignment by vision systems
Modular design for flexible configuration of individual collating-units
Output: up to 1200 sets per hour, depending on material & layout
LUK-ASC-3000
Semi-auto sheet collating system for high volumes
Feeding of overlay from reel
High-precision alignment by CCD vision systems
Ultrasonic system for small & perfect welding result
Output: around 300 sets per hour, depending on material & layout
LUK-SC-3
3 sets of welding heads
Max. Material size 450x650mm
Easy to adjust the welding time,welding temperatureand the welding depth for different thickness of material
It can fix magnetic strips and contactless inlays very well also
LUK-PF760B/1040B
Automatic sheet cutting system for paper cards manufacturing
The printing sheet will be cut into small cards after cutting two times
Collecting cards in order into one set
Output: around 2000 sets per hour , depending on material & layout
LUK-DB-4200
This machine can bind all size loop wires without changing the punching die
High output, upto 800~1500 books per hour
This machine has no strict demand for the quality of the double loop wire
Best price-performance ratio in the market
Simple & humanized machine structure for easy maintenance.

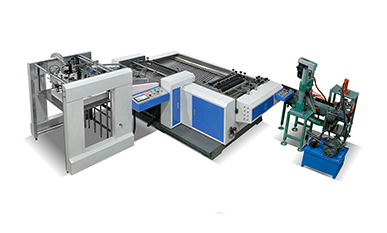

LUK-PF760D/1040D
