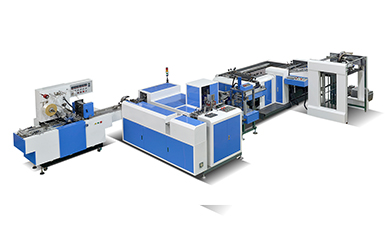

Playing Card Matching Machine
LUK-PF760S/1040S
Presentation: Best Price-performamce Play Card Matching Machine
Advantage: Superior Quality, High precision and high stability
Application: Play Card Manufacturer , Printing Company

Brochure Download:Download
Contact Us

    Overview:


    The automatic cards matching machine developed by our company is mainly used for cutting,

    stacking and die cutting of all kinds of card paper and playing card paper.


    It is not only efficient, but also has high precision. It can cut cards and playing cards of different

    specifications, and ensure that the printing sequence remains unchanged.


    It is an ideal equipment for professional card manufacturing.

    The internal electrical components of the machine are Schneider products imported from France,

    and the whole process is automatic: automatic conveyor, automatic vertical and horizontal slitting,

    automatic folding, automatic card sorting, automatic counting detection, automatic box setting,

    automatic plastic packaging, equipment integration of light, electricity and gas, safe operation and

    stable performance.


    Features:

    ￭Suitable for making all kinds of playing cards, such as game cards, poker cards, etc.


    ￭After printing, this machine can be used to produce small cards directly,

    available printing sheet size can be upto 1040x720mm


    ￭Fully automatic one, automatic sheet feeding,

    automatic vertical & horizontal slitting into small cards, automtic card sorting,

    automatic card counting, automatic card packing, etc.


    ￭Main electrical components will be imported from France with stable performamces.


    ￭Output: 2000-4000 big sheets/ hour


    Specification:

    Model PF-760S
    		 PF-1040S
    Max. paper size
    		 760×600 mm
    		 1040×720 mm
    Min. paper size
    		 450×500 mm 720×560 mm
    Max. card size 100x70mm 100x70mm
    Min. card Size 54×87mm 54×87 mm
    Paper weight
    		 250-800 g
    		 250-800g
    Best machine speed
    		 2000 big sheets/hour
    		 4000 big sheets/hour
    Machine power
    		 380V ,11KW 380V , 13.5KW
    Layout
    		 Customized Customied
    Packing Weight
    		 6500kg 7000kg
