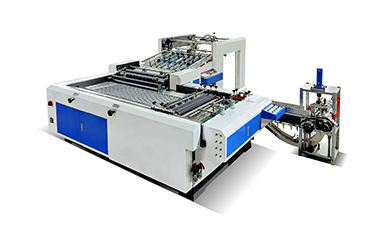

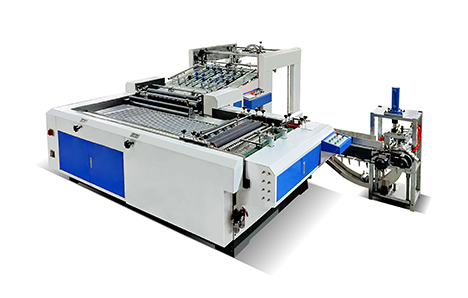

Playing Card Matching Machine
LUK-PF760B/1040B

Presentation: Automatic & Ideal Machine for Game Cards Poker Cards
Advantage: Superior Quality, High precision and High stability
Application: Playing Card Manufacturer & Printing Company

Brochure Download:Download
Contact Us
    Overview:
    Automatic cards matching machine is mainly used for all kinds of card paper, card paper cutting,
    composite. It not only high efficiency, and the precision of the cutting is also high, For different
    specifications of the card, poker for cutting, and ensure the printing order same as before, according
    to the order of the design of composite, it is an ideal equipment professional production of cards
    and poker. The machine process automation, automatic feeding, automatic cutting, automatic

    folding cards, automatic cutting corner.

    Features:

    ￭ Automatic cutting system for making all kinds of paper cards, such as game cards & poker cards,etc.

    ￭ Cutting card in order & collect cards set by set

    ￭ Cutting edges are smooth , round conors are available

    ￭ High Volume, around 2000 big sheets per hour

    ￭ Wide range of paper size & paper thickness applications for maximum flexibility

    ￭ CE completed safety guards

    Specification:

    Model LUK-PF760B lLUK-PF1040B
    Max. paper size
    		 760X600mm 1040×720 mm
    Min. paper size 450x550mm 720×560 mm
    Max. card size 110x110mm 140×140 mm ( with holes)
    Min card size 80x80mm 80×80 mm
    Paper thickness 250-800g/m2 250-800 g/m2
    Best machine speed 2000-2500 big sheets/hour 1700-2100 big sheets/ hour
    Machine Power 380V, 7KW 380V. 8.9kw
    Packing Size 3250×4350×1400mm
    		 5020×5230×1950mm
    Weight 3500kg 4000kg
