Inlay & Contaless Card Production

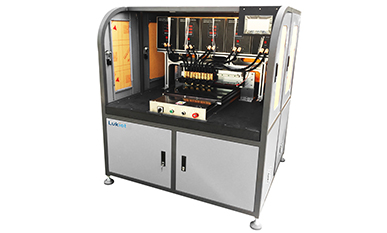

LUK-CB801
Presentation: Amazing Design Automtic Chip Bonding Machine
Advantage: Stable, Easy Operation & Mature Tech
Application: RFID Card, Pre-lam Inlay Manufacturer
Brochure Download:Download
Contact Us
    Overview:
    CB801 is designed for bonding /welding the antenna and the module for circuit connection by using
    double pulse current welding technology.

    It is controlled by PLC and welding position for each welding heads can be adjusted independently  in the PLC easily.

    Welding heads can be upto 8 , all the welding heads can work at the same time or respectively.
    Different layouts( 5x5, 5x12, 3x8,4x8) are available for this machine with great flexibility.

    Features:

    ￭ User friendly PLC control for easy operation
    ￭ Double pulse current welding technology is adopted for stable working performances and precise welding effect.
    ￭ High accurate PLC dual-axles positioning system is adopted for precise welding  and automatic welding will be carried out according to the pre-set path in the PLC.
    ￭ Welding position for each welding heads can be adjusted independently
    easily.
    ￭ The welding will not be effected by the value of voltage fluctuation with the high frequency technology, which will improve the yield rate .
    ￭ Welding heads can be upto 8 , all the welding heads can work at the same time or respectively
    ￭ Different layouts( 5x5, 5x12, 3x8,4x8) are available for this machine with great flexibility.

    ￭ CE completed safety guards



    Specification：

    Model
    		 LUK-CB801
    Control Method
    		 Mitsubishi PLC control+servo system
    Applicable Material
    		 PVC, ABS,PETG,etc. sheet material
    Available Sheet Layout
    		 5x5, 512, 3x8, 4x8,
    customized layout is acceptable
    Air Pressure
    		 6kg/cm2
    Welding Position Accuracy
    		 ±0.01mm
    Power supply
    		 220V,50-60Hz, 18 kw
    Output
    		 7000 pcs /hour
    Gross Weight
    		 1000kg
    Dimensions
    		 L1800xW800xH1800mm
    Yield Rate
    		 99.9%
