Tape Layering
LUK-MAE10

Presentation:Patented Design & High Quality Tape Layering

Advantage:   High Speed, Precise, Stable & Easy Operation

Application:  Applicable fo stably welding the magnetic strips onto overlay films from
reel-to-sheet.

Brochure Download:Download
Contact Us
    Overview:

    MAE10 is automatic tape layering machine and it is designed to stably weld the magnetic strips onto overlay films from
    reel-to-sheet.

    In the tape layering process, upto 10 magnetic stripes are transferred onto overlay foils. Using 10  tracks, this machine
    can reach upto 10-12 meter per minute from reel-to-sheet.This is based on an overlay thickness range of 40 to 200
    microns and with a width of 580mm.

    The magnetic stripes are pressed, using their full width, onto the overlay material. It is designed to accommodate
    different stripe widths and spacing. Intuitive operational handling and easy maintenance also maximize the efficiency.


    Features:

    ￭ Tape application upto 10-12 meters/min
    ￭ Individual radial temperature and pressure control for each tape application head
    ￭ Simple adjustment to alter tape pitch and to accommodate tape widths
    ￭ Operation speed can be adjusted according to the needs of overlay films
    ￭ User friendly touch screen control for easy operation
    ￭ Servomotor feeding systems performs a laying accuracy ± 0.15mm
    ￭ Wide range of overlay thickness and number of stripe applications for maximum flexibility

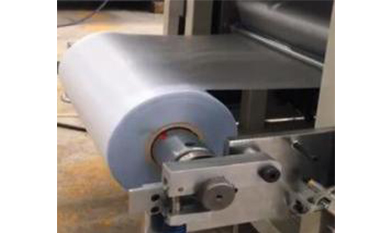

    ￭ Air chuck tension system for easy loading and unloading overlay reels
    ￭ CE completed safety guards


    Specification:

    Model LUK-MAE10
    Overlay Thickness
    		 0.04-0.2mm
    Max Width of Foil
    		 580mm
    Layout
    		 3×7/3×8/3×10/4×7/4×8/4×10 for optional
    Magnetic strip Width
    		 12.7mm, 6.35mm
    Max. Reel Diameter
    		 380mm
    Heating Temperature
    		 <400ºC
    Temperature Control
    		 ±2.0ºC
    Welding Accuracy
    		 ±0.15mm
    Productivity
    		 6-12 meters/ minute
    Power
    		 AC380V 50/60Hz  ,7000W
    Weight
    		 800kg
    Dimensions
    		 L2200×W1050×H1800mm
