Lanyard Cutting Machine
LUK-RC100

Presentation: Automatic hot knife polyester webbing tape ribbon cutting machine
Advantage: Economy, Heavy duty, high speed, high accuracy
Application: Lanyard manufacturers

Brochure Download:Download
Contact Us

    Overview:

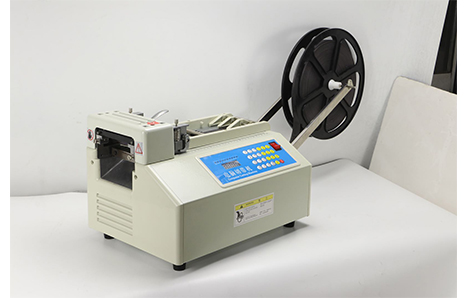

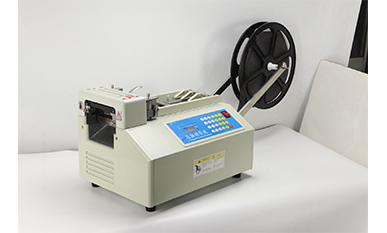

    This automatic hot knife polyester webbing tape ribbon cutting machine is suitable for cutting lanyards, various kinds of tubes, such as pvc tube, rubber tube, silicone tube, fiber tube, teflon tube, heat shrink tube, belt/zipper/webbing/zipper/hook and loop, wire/cable, copper film/aluminum film, etc. Different shapes can be cut: rectangle, Arc,parallelogram and swallowtail ect.


    It adopts microcomputer numerical control display device for easy operation. The length/number of cutting belt and feeding speed can be set freely, the adjustable roller feeding mechanism is installed, the pressure and lifting can be automatically adjusted on both sides, and the material can be quickly discharged, and the green thimble feeding mechanism can effectively prevent the material from being pulled Injury.


    Closed Photos:

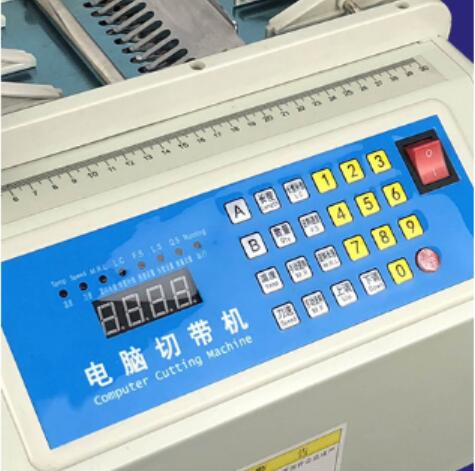

    1. Easy operation, The operation interface is simple and easy to understand.


    2. The product adopts advanced and stable structure design, durable and not easy to damage.

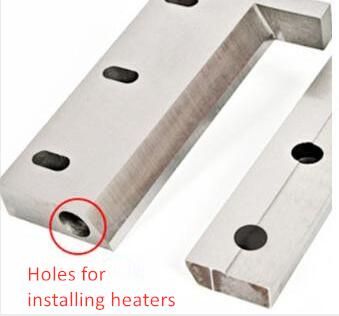

    3. Special Steel Knife with perfect cutting edge

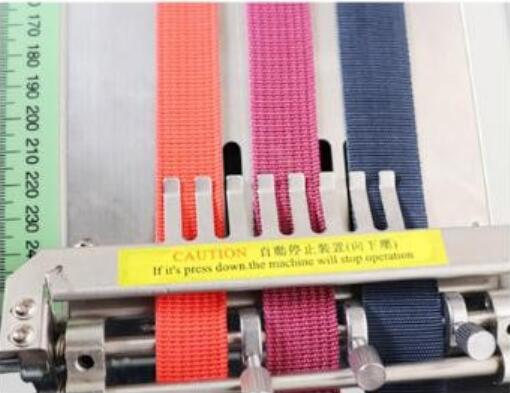

    4. Automatic stop with omron sensor & device when no material feeding

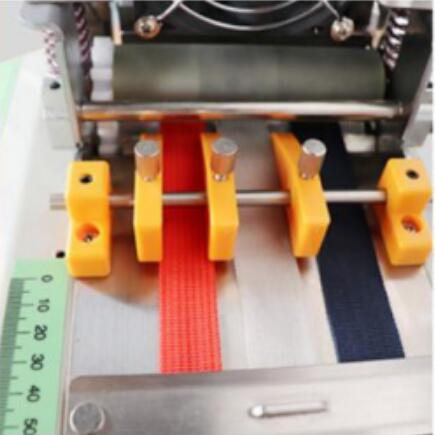

    5. Many pieces can be cut at the same time.

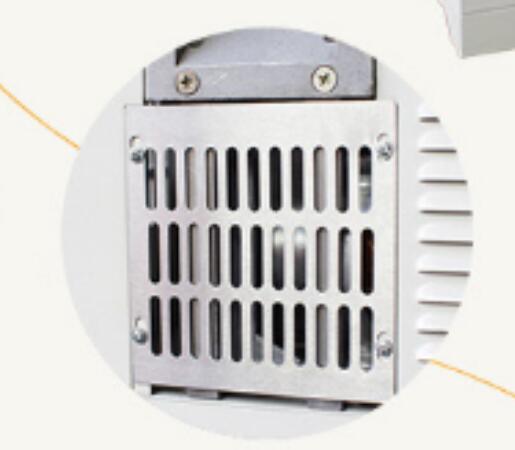

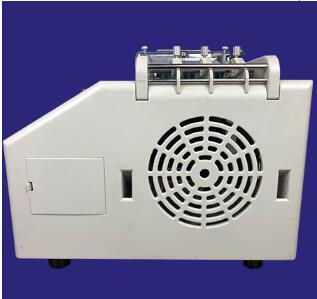

    6. Heat dissipation outlet,can provide long time operation of the machine.

    Features：

    ￭ High speed: It can cut 80~120 times per minute for 50mm long lanyards.
    ￭ Digital smart display screen for easy operation.
    ￭ Back and front side manual operating.

    ￭ Accuracy: Cutting length is accurate cewing to a stepping motor.
    ￭ Cutting type: Cutting edge is neat & beautiful due to using a hot cutter which is durable.

    ￭ Memory: Setting length, setting quantity & setting speed will be not erased even if power off & on.
    ￭ Application: suitbale for cutting belt loop, soft tube, string, plastic zipper, elastic band, small webbing, etc.

    ￭ Heavy duty, high speed, high accuracy, designed for cutting non-adhesive materials.

    ￭ Time & labour saving,one machine can save 5-8 human labor cost.

    Specification:

    Model
    		 LUK-RC100
    Cutting Formation
    		 Automatic Hot Cutting
    Power
    		 450W
    Voltage
    		 220V
    Cutting Width
    		 3mm-95mm
    Cutting Length
    		 1mm-9999mm
    Cutting Speed
    		 80-120pcs/Minute
    Machine Size
    		 480(L)x420(W)x430(H) mm
    Net Weight
    		 30kg
