Inlay & Contaless Card Production

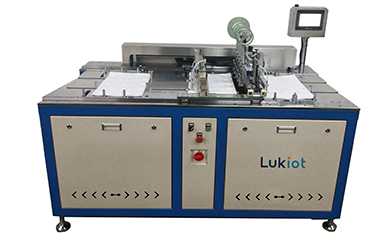

LUK-TDM800
Presentation: High Quality Glue Tape Dispensing Machine
Advantage: High Speed, Precise, Stable & Easy Operation
Application: Applicable for blocking chip holes to support chips
Brochure Download:Download
Contact Us
    Overview:
    Automatic Tape Dispensing Machine TDM800 is designed for  dispensing the green tape onto back side of the hole-punched inlay middle material before placing the chips on the inlay sheets, used for blocking chip holes to support chips.

    The adhesive glue tapes are used for temporarily sticking the chips for chip bonding process.  It can greatly lower the needed labor power.

    It is controlled by PLC for easy operation and easy maintenance. High accurate sensors are adopted for  precise material feeding, glue tape placing,  glue tape cutting & sheet collecting .

    Features:

    ￭ User friendly PLC control for easy operation
    ￭ High accurate PLC servo system is adopted for precise material picking, glue tape placing,  glue tape cutting & sheet collecting
    ￭ Automatic sheet pick-placing , automatic glue tape dispensing & cutting system
    ￭ This machine has the function to inspect the glue tape and will give a alarm when the glue tape was broken
    ￭ This machine can be available for different sheet layout , such  as 5x5, 3x8, 4x8 layout ,etc.
    ￭ Multiple dispensing heads can be working at the same time;
    Distance between two heads can be adjusted as per different sheet layouts.
    ￭ Precise punching die and PLC system for good tape punching.
    ￭ Output collector is designed to collect the dispensed sheets in order.

    ￭ CE completed safety guards


    Specification:

    Model
    		 LUK-TDM800
    Control Method
    		PLC control+  servo system
    Applicable Material
    		 PVC, ABS,PETG,etc. sheet material
    Available Sheet Layout
    		 5x5, 3x8, 4x8,
    customized layout is acceptable
    Air Pressure
    		 6kg/cm2
    Position Accuracy
    		 ±0.01mm
    Power supply
    		 220V,50-60Hz, 3kw
    Output
    		 500-800 sheets /hour , depends on sheet size
    Gross Weight
    		 500kg
    Dimensions
    		 L1800 x W900xH1500mm
    Yield Rate
    		 99.9%
