Card Sorting

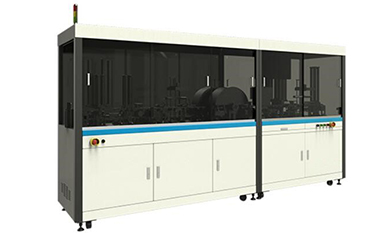

LUK-SC6000
Presentation: Patented Design Card Sorting Machine
Advantage: High Speed, High precision and high stability
Application: Smart Card Manufacturer
Brochure Download:Download
Contact Us
    Overview:
    During card making process, cards with different printing and chip data inside the cards are often mixed together. These cards need to be separated before delivery.

    Lukiot's automatic card sorting machine can sort the cards accurately based on OCR system and contact / contactless IC recognition. The system reads and recognizes both surface and internal information of the card to check if they match in the database, and then determines the current card serial number so as to realize the cards sorting and ranking.Meanwhile, the position and information of missing card can be recognized.


    Function Description:

    S.N. Module Configuration Function & Parameters
    		 Module Photo
    1 Input Module
    		 Equipped with 1 removable input magazine and the maximum capacity is up to 500pcs
    2 Flipper Module
    		 Equipped with 2sets of flippers to adjust the card orientations so as to realize recognizing and checking the surface and chip information at different card sides.
    3 Recognizing Module
    		 2 sets. Recognition module consists of OCR module and contact /contactless IC module which realize reading and recognizing surface and internal information of the card, as well as matching that with the database to confirm the current serial number for the card.
    4 Buffer Module
    		 1 set. Buffering the cards that belong to the current sorting range but not belong to the current sorting unit with the function of auto loading/unloading.
    5 Card Ranking Module
    		 2 sets of turntables, each set can store 250pcs of cards, 500pcs in total.
    6 Checking Module
    		 1set.Checking module consists of OCR module and contact / contactless IC module which realize reading and recognizing both surface and internal information of the cards.
    7 Output Module
    		 Adopting turntable output structure. Equipped with 2 output magazines ( capacity of 500 pcs) for sorted cards with auto-switch function; 1 pos-occupying card magzine&1 reject card magazine
    8 Recycle Box
    		 Recycle cards not belonging to current sorting job with capacity of 50pcs.


    Features:

    ￭ Supported for various smart cards conforming to ISO/IEC 7816 standard
    ￭ Load pos-occupying card automatically to ensure continuous card sorting in the case of card missing
    ￭ Buffer module can store 2500 pcs with the function of auto-loading and unloading
    ￭ Check both surface and internal information of the card by multi checking methods so as to ensure that the surface and internal information match with accurate sorting sequence
    ￭ Load unit-driving card automatically to differentiate each sorting unit easily

    ￭ High-efficiency double turntables sorting mechanism with high speed and strong stability

    Specification:

    Model
    		 SC6000
    Card Supported
    		ISO ID-1/CR-80 standard cards such as PC、PET、PVC、ABS
    Air Supply
    		 0.6 Mpa
    Operating System
    		 Win 7
    Communication Interface
    		 Ethernet
    Power 220V , 50-60Hz, 5.0kw
    Machine Size
    		 3.52(L)x0.88(W)x1.92(H)m
    Gross Weight
    		 1500kg
