Card Punching
LUK-CP-3A/4A/5A

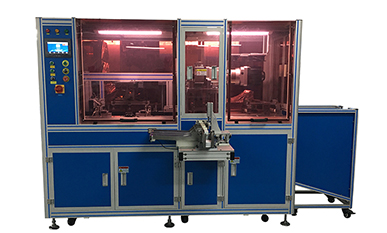

Presentation: Fully Automatic PVC Card Punching Machine
Advantage: High Speed, Precise, Stable & Easy Operation
Application : Designed for the punching of smart cards from sheets.
Brochure Download:Download
Contact Us
    Overview：
    Lukiot’s fully automatic card punching system are designed for the punching of smart cards from sheets.

    The systems enable the high-quality production of both ISO standard cards and shaped cards.
    The powerful servo motor systems ensure continuous precision with alignment to print sensor marks.

    The tools are well proven with an extremely long life time. The possibility to choose 3-up / 4-up / 5-up punching layouts for A3 punching offers flexibility.
    The optimized design allows for a quick and easy change overtime.


    Features:

    ￭ Using friendly PLC industrial automation controlling system with self diagnostic prompts and modem interface facility
    ￭ Fully automated material feeding,automated sensor mark positioning, automated punching, automated skeleton off-take.
    ￭ 3 axes in-line automatic registration to printed sensor marks
    ￭ High quality servo motor and high precision ball screws as well as high sensitivity photoelectric recognition device to make sure highest punching precision
    ￭ High power servo motor as the power source for strong punching capacity
    ￭ Punching speed is adjustable
    ￭ Advanced card conveyor structure , automated feeding & output functions realize fast speed & high efficiency

    ￭ If anything unusual happens, the machine will stop automatically and give an alarm with fast speed and accurate positioning



    Specification:

    Model CP-3A CP-4A
    Layout
    		 3x7/3x8 4x7/4x8

    Number of the Punches

    		3 4
    Punching Power
    		 Servo System
    Punching Precision
    		 120 L
    Air Source
    		 ±0.1mm
    Air Consumption
    		 150 L/min
    Power Source
    		 AC380V  50/60Hz 5.5KW
    Power
    		 5.5KW
    Controlling Method
    		 PLC
    Productivity
    		 16,000-24,000 cards/hour
    Operator
    		 1 person
    Dimension
    		 L3000 x W1240 x H1750mm
    Gross Weight Approx. 1,800 KGS
