Card Hot Stamping

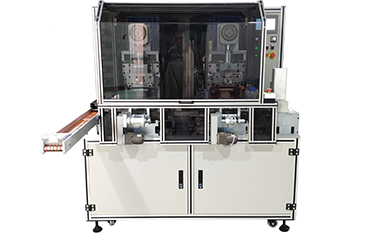

LUK-CHS-8000D

Presentation: Patented Design & High Quality Hot Stamping Machine

Advantage:High Speed, Precise, Stable & Easy Operation

Application: Applicable for any cards that need holograms, signature bars or security label stamping

Brochure Download:Download
Contact Us
    Overview:
    Lukiot’s card hot stamping can be easily integrated into any existing production environment, attaching security foils such as “Hologram label”, “Signature panel”, “Gold/silver/color of pattern/Logo/text”, “Scratch label”, “Bronzing/silvering on the embossed convex numbers” on the card front and/or back side with a maximum of two stamping units.

    By using two stamping heads, CHS-8000D reaches the market-wide best cost per card value. It is a highly sophisticated card hot stamping solution for a wide application field, as well as for special applications.Both sides of the card can be processed in one processed in one production cycle with the integration of the card turning station.

    Both two models can hot stamp hologram label and signature panel for credit cards,such as visa, master, JCB, union pay, Indian rupee,etc.
    Features:
    ￭ Automatic card feeding/ stacking from magazine to magazine

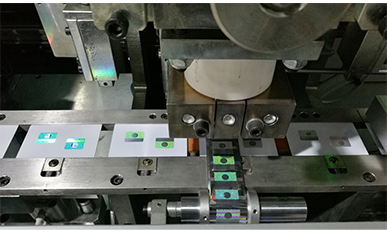

    ￭ Automatic card hot stamping system for holograms, signature panels,
    scratch-off labels, positive/negative lettering,etc.

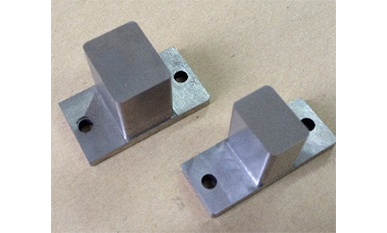

    ￭ Easy & quick change tools
    ￭ Changeable stamping head for various foil widths
    ￭ Card front side/back side processing under card flipping unit

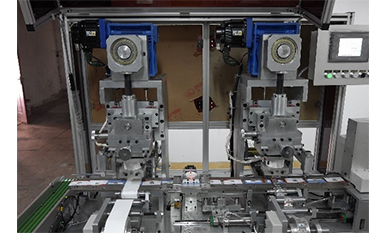

    2-station stamping mechanism and flip institutions can complete the stamping in positive and negative side of laser tag and signature strip at one time, or    stamp twice on card one side.
    ￭ Micro adjusting of hot stamping depth
    ￭ Adjustable hot stamping temperature depending on the foil size an card type
    ￭ The hot stamping head is able to stamp on different positions of the card by adjusting the X axes and Y axes.
    ￭ Highly accurate stamping positioning system

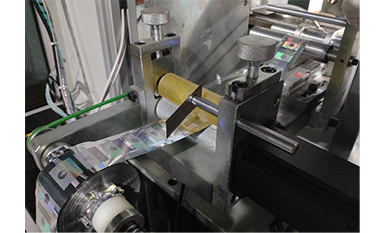

    The material unwind and rewind are able to control foil material tension by brake devices for precise positioning;
    ￭ Adjustable pitch or print mark registration:
    Di-Soric fiber optic sensor is adopted to recognize sensor marks on hologram foil strip precisely.
    ￭ One hot stamping unit, extension to two stamping units on request

    ￭ Completed CE safety guards


    Specification:

    Model CHS-8000D
    Stamping Type
    		 Flat
    Station QTY
    		 2
    Card Materials
    		 PVC,ABS, Teslin,PC,PETG, Hardpaper, etc.
    Card Size
    		 CR80;others on request
    Card Thickness
    		 0.7-0.9mm; others on request
    Stamping Drive
    		 Servo system
    Stamping Pressure
    		 ≤500kg, adjustable
    Compressed Air
    		 0.6MPa
    Heating Temperature
    		 ≤200ºC,adjustable
    Temperature Accuracy
    		 ±1.0ºC
    Stamp ing Position Accuracy
    		 ±0.15mm
    Foil Position Accuracy
    		 ±0.15mm
    Power Supply
    		 AC380V /AC220V 50-60Hz
    Power
    		 2.6kw
    Output(cards/hour)
    		 2800-4500 (stamping     twice)
    Machine Size
    		 L1750 x W1150 x H1650 mm
    Gross Weight
    		 980kg
