Ultrasonic Welding

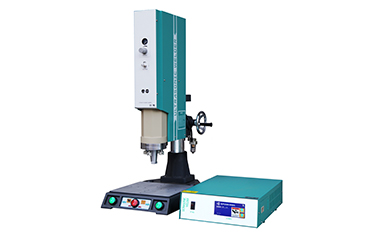

LUK-UTA2000

Presentation: Cost Effective Digital Ultrasonic Welding Machine
Advantage: Economy, Good Quality, Stable and Easy Operation
Application: Lanyard manufacturers

Brochure Download:Download
Contact Us

    Overview:

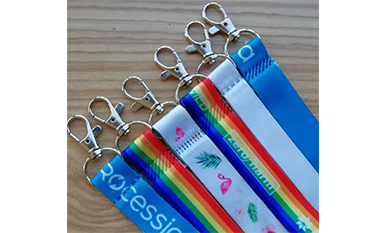

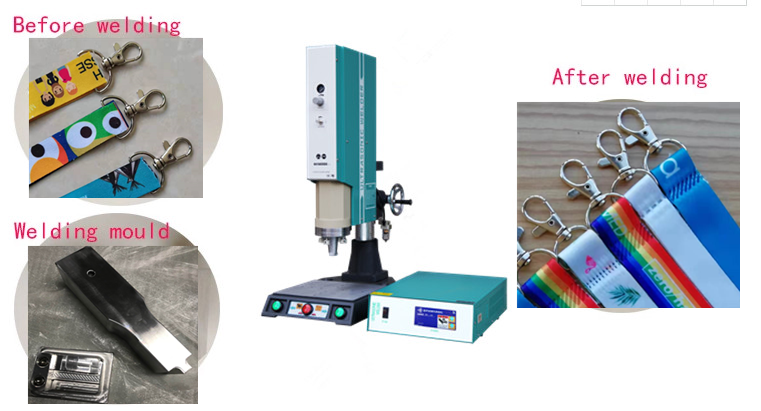

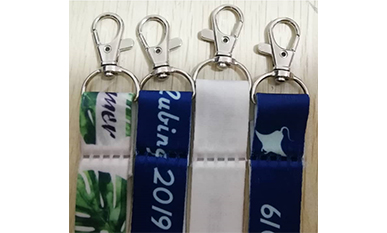

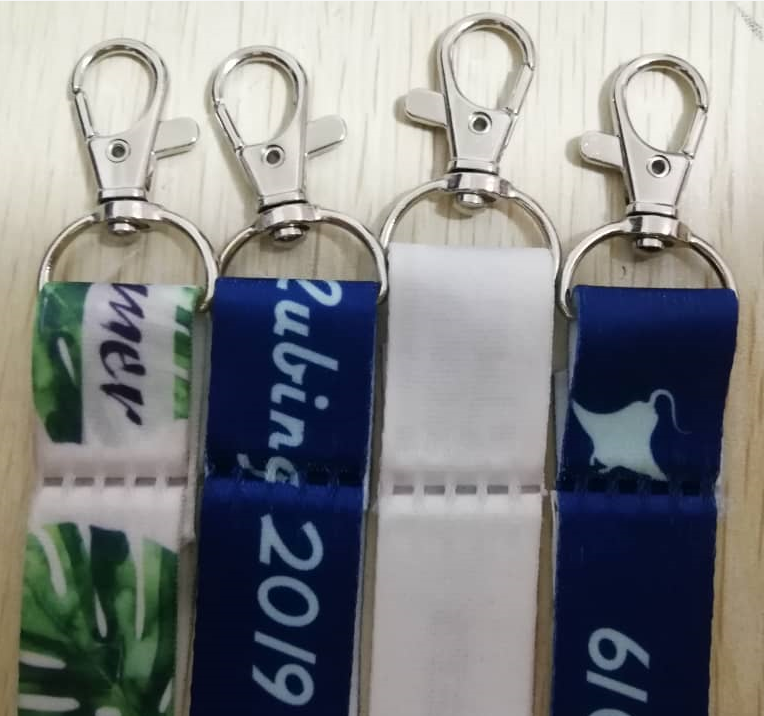

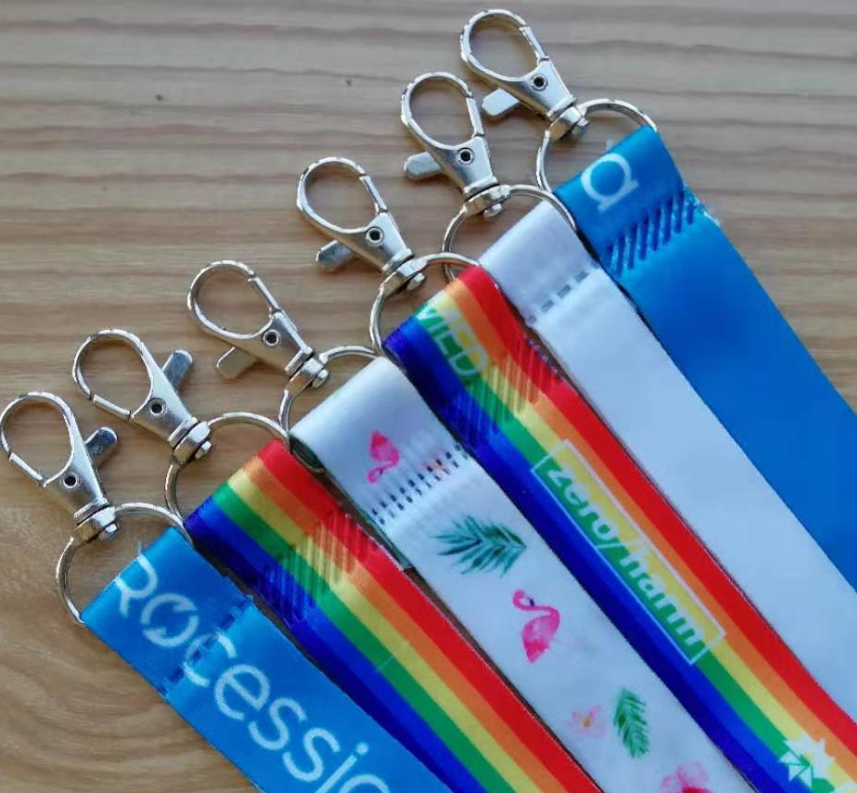

    This machine is designed to weld the ribbon lanyards by ultrasonic method and no need any other material. Its speed is much higher than use sewing machine or clamping machine.Welding effect is with good quality for recyle use.



    Features：

    ￭(Floor type, Square column and Circular column optional)
    Dove-tail main column, no deflection during stroke movement.
    ￭ Welding, Staking, Fear of falling, Inserti-on of metal pieces.
    ￭ Horizontal plate have four srews, easy to adjust the mould.
    ￭ Current overload protection, With the automated system, fast delivery.
    ￭ The application in foreign investment enterprise.
    ￭The frame is welded by bending shape, adopted the seamless steel tube column,
    has super high type column seat.
    ￭ Adopt Japanese emperor steel luffing device, rugged and durable,

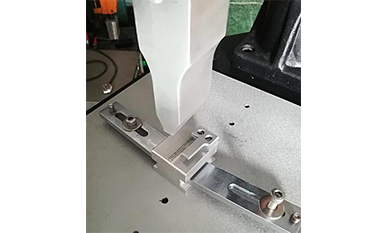

    ￭ Adopt the adjustable structure of welding head level, and adjust the mould conveniently,
    ￭ Complete set of high quality imported components assembly,
    ￭ Single column electric lifting fuselage, easy and convenient operation.
    ￭ We has developed a low-cast welding machine which offers you an economic choice for welding fusing and vibration packing. It can be positioned horizontally to hand special work pieces. And it boats surge protection and other features which make it ideal for use in automated production layouts, yielding results that are high in quality.
    ￭ Easy operation.


    Specification：

    Model
    		 LUK-UTA2000
    Display
    		 4.3 inch full color touch
    Auto Frequency adjust
    		 Automatic tracking of horn frequency in real time
    Welding time
    		 0.01-9.99sec
    Frenquency display
    		 Real-time display of horn frequency changes due to temerature differences
    Amplitude
    		 0%-100% adjustable
    Mode
    		 Time/Energy/Manual Mode
    Air Compressor
    		 should be prepared by customer
    Power supply
    		 170-250V /50-60Hz
    Power regulator
    		 Built-in
    Output Power
    		 20Khz-1500W
    Internal power supply
    		 12V DC with low voltage protection
    Machine size
    		 540 x 400 x 1050mm
    Net weight
    		 130kg



    Working Principle:

    Ultrasonic vibration with the ultrasonic transmission welding head to welding parts, as the two-welding large acoustic resistance and therefore produce local high temperature melt interface. Under certain pressure, make the two welding, a beautiful and strong welding effect.

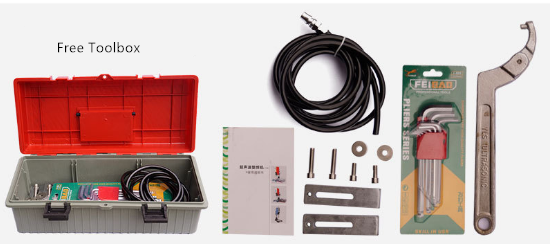

    Free Accessories:
