PLASTIC CARD PRODUCTION

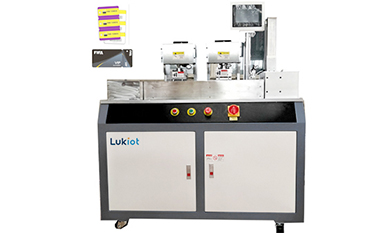

LUK-SCP-3Y

Presentation: High Quality Automatic Notch & Crease Cutting Machine

Advantage: High Speed, Accuracy, Stable & Easy Operation

Application:   Designed for automatic hole punching & ceasing  from ISO standard card body or non-standard card body
Brochure Download:Download
Contact Us
    Overview:
    This machine is fully automatic one, designed for automatic hole punching & ceasing  from ISO standard card body or non-standard card body, ceasing function is for easy break-up by hand.
    The machine will be designed with two stations. These two stations are controlled by PLC, customer can choose which station will be working for simple cards. If necessary, two stations will be working at the same time for complex cards.


    Features:

    ￭High speed & accuracy
    ￭Low noise, low vibrations
    ￭100% servo motor driven
    ￭User friendly touch screen moniter and operator interface systems.
    ￭Shear-type male & female die sets for clean & quality hole edges
    ￭Reasonable die sets design makes sure the die sets is easy to be changed when cutting different cards.
    ￭Two stations can be working at the same time, also can be working separately, very flexible
    ￭The cards will be conveyed by belt , stable &  speedy, also no scratches.
    ￭The machine is designed with double card detection function, when feeding double cards, the machine will stop cutting and give a alarm to avoid wrong cutting and damage of die sets.
    ￭If there is no cards feeding, the machine will also stop cutting and give a alarm


    Specification:

    Model No.
    		 SCP-3Y
    Control Method
    		 PLC+ Servo System
    Positioning Precision
    		 ±0.020mm
    Suitable Card Size
    		 Min. size: 85.60x54mm        Max. Size: 85.60x140mm
    Air Source
    		 6kg/cm²
    Air Consumption
    		 Approx 40L/min
    Working Station
    		 Two
    Power
    		 AC220V  50-60 HZ 3.5KW
    Gross Weight
    		 600 KGS
    Operator
    		 One
    Productiivity
    		 Approx. 2500 cards per hour
