PLASTIC CARD PRODUCTION

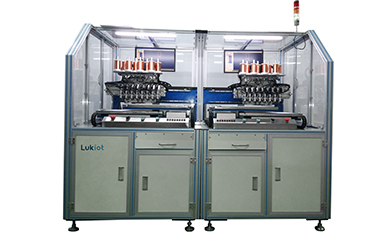

LUK-AEM216
Presentation: Patented Design Antenna Embedding Machine
Advantage: High Speed, Precise, Stable & Easy Operation
Application: Designed for embedding or implanting the copper wire onto INLAY middle sheet as per the designed track
Brochure Download:Download
Contact Us
    Overview:
    AEM216 is designed to embed copper wires onto inlay middle sheet with ultrasonic embedding technology.

    This machine is available to wind inlay coils onto different sheets with different layout specifications of the antenna layer and various shapes .The antenna shape and size can be easily designed in AUTOCAD software.

    Embedding heads can be upto 16 and working stations can be up to 2 on-line as per different layout for higher productivity.Embedded antenna has uniform line spacing with  smooth & accurate performance.

    With advantages of stable mechanical operation, easy debugging and easy maintenance,this machine has been widely used in Generation ID card and residence card manufacturing process.

    Features:

    ￭ User friendly IPC control for easy operation
    ￭ Advanced ultrasonic wire embedding technology for good embedding result and high efficiency.
    ￭ 16 Embedding heads can be optional.
    ￭ 2 working stations/embedding group can be optional.
    Each embedding group can work alone or together with good flexibility and easy to choose.
    ￭ Precise position locating controlled by servo system
    Mitsubishi 3-axis servo control and MOXA motion control system are applied in the control system to ensure high position precision.
    ￭ The antenna shape and size can be easily designed in
    AUTOCAD software and pre-set in professional PC drawing software

    ￭ The size of working station can be customized for various sheet layout (3×8/4×8/5×5/5x12)  embedded in the same machine.
    ￭ CE completed safety guards


    Specification:

    Control Method
    		 IPC control+ 3-axis servo system
    Applicable Material
    		 0.1-0.15mm copper wire;
    0.2-0.40mm PVC, ABS,PETG,etc. sheet material
    Embedding Heads
    		 Upto 16 heads ( two groups）
    Working Stations
    		 1-2,  s220V,50-60Hz, 4kwtation size can be customized  for various sheet layout (3×8/4×8/5×5/5x12)
    Air Pressure
    		 6kg/cm2

    Servo Inde

    Accuracy

    		±0.015mm
    Power Supply
    		 220V,50-60Hz, 4kw
    Output
    		 2500-4500 pcs /h
    Gross Weight
    		 1500kg
    Dimensions
    		 L1750×W1150×H1600mm
