Overview:

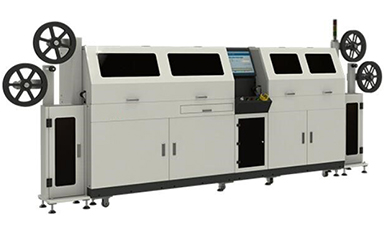

CMP120 is designed for test/ pre-personalization of smart card IC modules , especially for GSM and banking applications.

The machine integrates chip counting, chip initialization, chip pre-personalization, open & short test ,reject chip punching and marking, etc. function modules and guarantees the personalization performance .Modular design can meet your different production requirements and maximize decreasing your investment cost.

The flexible design enables operators to switch chips production between 6PIN and 8PIN within 60seconds.
The testing of contact, contactless, dual-interface and single or multi-row is achieved with the best performance and yield in the market by using the high-end reader system.

Function Description:

SN	Module Configuration	Function & Parameters	Photo
1	unwinding module	Automatic unwinding with adjustable speed can achieve the reversed rotating
2	Main-personalization module	120 sets of 8-pin/ 160 sets of 6-pin perso heads are equipped as top configuration and it can be customized on demand accordin
3	re-personalization module	2 re-perso heads are configured , which can re-perso the failed chips. Max 16 re-perso heads can be configured on demand.
4	Punching module	Failed re-perso chips will be punched or marked as the reference for the next process
5	rewinding module	Automatic rewinding can be realized with adjustable speed
6	optional module	Electrical performance checking module to check the chip electrical performance

Features:

￭ It will cost only 60s to switch production tasks between 6PIN and 8PIN contact chip
￭ The top chinese industrial-class reader with open/short test function is stable and high cost-effective
￭ Each module can work independently or be combined on demand
￭ Free of production site due to electricdriving design without external air supply
￭ Max throughput 60,000 cph for 6PIN chip;
Max. Throughput 45,000 cph for 8PIN chip

Specification:

Item	CMP120
Chip type	6PIN , 8PIN
Encoding failure rate	less than 0.1%
Malfunction rate	Downtime will be less than 1 hour within 100 hours’ continuous production
Operating system	Win7
Communication Interface	Ethernet
Max. throughput	45,000 cph with 120 sets of 8-pin chip perso heads configured; 60,000 cph with 180 sets of 6-pin chi perso heads configured
Power Supply	220V, 50-60Hz, 2kw
Overall Dimension	3.7(L)x0.86(W)x1.95(H)m
Gross Weight	650kg
