PLASTIC CARD PRODUCTION

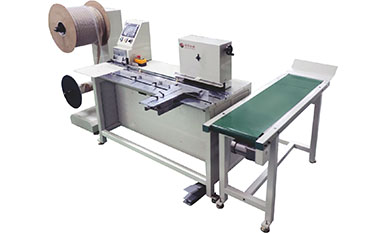

LUK-DB-4200
Presentation: Best Price-performamce Loop Wire Binding Machine
Advantage: Superior Quality, High precision and high stability
Application: Book Manufacturer
Brochure Download:Download
Contact Us

    Overview:


    Lukiot's double loop wire binding machine is designed to bind loop wires for various education books and calendars, etc.  It is integrated in humanized functions with automatic wire cutting, conveying & binding, etc.It is the basic and necessary machine for book making manufacturer.


    All double loop wires from  1/4" to 11/4"  will be available for this machine without changing the die.

    Only one person will be needed to operate this machine and it has very stable functions .

    Its structure is designed simple & humanized for easy maintenance.


    Features：

    ￭ This machine can bind all size loop wires without changing the punching die.

    ￭ High output, upto 1500 books per hour.
    ￭ Humanized PLC to input all necessary dates, control the whole machine process in computer. Support Chinese and English language.
    ￭ There is no  strict demand for the quality of the double loop wire ,
    ￭ The machine can adjust the double loop wire automatically.
    ￭ Automatic alarm and display function, engineer can act promptly.
    ￭ Only 1 person is needed to operate this machine.

    ￭ Simple & humanized machine structure for easy maintenance.


    Specification:

    Model LUK-DB-4200
    Working Speed
    		 1500 books/hour
    Suitable Double Wire Diameter
    		 1/4-11/4 inches
    Suitable Pitch
    		 2:1 or 3:1
    Max. Book Width
    		 420mm
    Max. Binding Thickness
    		 28mm
    Air Compressor
    		 1.5kw , 0.6-0.8Mpa
    Power
    		 220V ,50-60Hz , 1 Phase, 1kw
    Net Weight
    		 300kg
    Machine Dimension
    		 Main Machine:
    2030*1000*1230 mm
    Wire feeder:
    580*780*1060 mm
    Conveyor:
    1100*370*2160 mm



Contact us
* Name:
Company:
* Email:
* Tel:
Country:
* Message:
Those Might Attract You

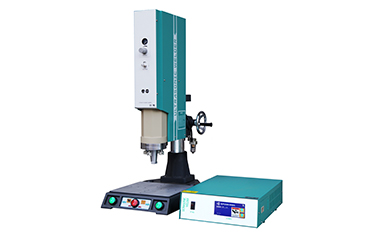

LUK-UTA2000
Designed to weld the lanyards and the hooks
Ultrasonic welding with good-looking welding effect
Cost effective one with stable performances
Easy mould adjusting & changing
Single column electric lifting fuselage, easy and convenient operation
This machine has higher speedthan sewing machine or clamping machine

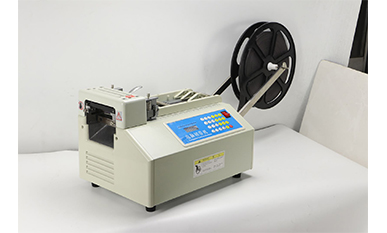

LUK-RC100
Automatic hot cutting with perfect cutting effect
Cutting speed for lanyard with 50mm length: 80-20 times per minute
Automatic stop when no material feeding
Cutting length ,width,quantity,speed will be adjustable
Matched with automatic alarm device & blanket autoamtic adjustment
Labour saving, one machine can save around 5-8 human labour cost
LUK-RH600
Designed to print the lanyards by printed transfer paper
Single-side printing and double-side printing are available at the same time
Max printing width: 600mm
Parallel printing for higher printing precision
Matched with automatic alarm device & blanket automatic adjustment
Speed: 50-100m/piece/hour
LUK-CHS-8000S
Automatic card hot stamping system
Quick change tools
Adjustable stamping position
Highly accurate stamping positioning system
Operator friendly teaching & operation
Up to 4,800 cards per hour
LUK-PCM-12000
Fully automatic playing card punching system
Suitable sheet Material: PVC, ABS, Paper,etc.
Max. sheet size: 720x1000mm
Punching dies will be customized as per customer's sheet size & card size
Punching precision: upto±0.1mm
Output: around 7500 times per hour
LUK-DDA15000
Ideal for regular & irregular web layouts
Cost reduction with fast return of investment
Easy change over different antenna formats
High Efficiency with Yield ≥ 99,7%
Up to 15,000 inlays per hour
LUK-CM-250N
Flexible for RFID Stickers, RFID Hangtags, Woven Labels, Care Labels and Baggage Tags
Flexible for Dry and Wet Inlays
High Converting & Die Cutting Precision
Max. Speed: 100 meters per minute
Highest level of customization, one row/ two rows/ three rows/ four rows are available
LUK-TAG250-P
Multi-job handling in one batch
Highly efficient personalization line
High flexibility through modular concept
Wide range of encoding formats for UHF, HF or NFC
Up to 25 meters per minute
LUK-MC230A/320A
Designed for packing various kinds of regular size products by BOPP film
Packing length: 60-160mm; Packing width:30-100mm ; Packing height:10-40mm
High Packing speed ,upto 120 bags per minute
Innovation design with stable performamces
Low noise,CE safety guards
LUK-MC80
Designed for packing various kinds of regular size products by carton,such as game cards, play cards, medicine plates, foods, etc.
Humanzied design for longest life time & easy handling
Packing speed is high,around 80 cartons per minute
High Packing precision with stable performances
Low noise,CE safety guards
LUK-PCM-5000
Semi-auto equipment for cutting cards from printing sheet in order
Manual sheet feeding, but card cutting automatically
Shear-type male & female die sets for clean and smooth card edges
Side stopper positioning for easy operation
Output: around 400-600 big sheets per hour, depending on material & layout
LUK-ASC5000
Automatic high speed sheet collating system
Feeding of overlay from reel
High-precision alignment by vision systems
Modular design for flexible configuration of individual collating-units
Output: up to 1200 sets per hour, depending on material & layout
LUK-ASC-3000
Semi-auto sheet collating system for high volumes
Feeding of overlay from reel
High-precision alignment by CCD vision systems
Ultrasonic system for small & perfect welding result
Output: around 300 sets per hour, depending on material & layout
LUK-SC-3
3 sets of welding heads
Max. Material size 450x650mm
Easy to adjust the welding time,welding temperatureand the welding depth for different thickness of material
It can fix magnetic strips and contactless inlays very well also
LUK-PF760B/1040B
Automatic sheet cutting system for paper cards manufacturing
The printing sheet will be cut into small cards after cutting two times
Collecting cards in order into one set
Output: around 2000 sets per hour , depending on material & layout
LUK-DB-4200
This machine can bind all size loop wires without changing the punching die
High output, upto 800~1500 books per hour
This machine has no strict demand for the quality of the double loop wire
Best price-performance ratio in the market
Simple & humanized machine structure for easy maintenance.
LUK-PF760D/1040D
Automatic sheet cutting & card collecting System for paper cards
With Hole Drilling System
Collecting cards in order
Output: around 2000 sets per hour , depending on material & layout
Optional function: Card counting & card packing, etc.
LUK-PF760S/1040S
Ideal equipment for play cards production in bulk quantity
High efficiency & high precision for cutting
Best price-performance ratio in the market
Sheet Layout can be customized
LUK-DOD7000A
Industrial designed high-speed personalization system for flat debit and credit cards
One input module+ two labeling modules
Highly modular and flexible system design for ID or banking card production
Best price-performance ratio in the market
High-quality industrial inkjet printing
LUK-DOD8000E
High-speed personalization system for personalization tasks, technologies and processes
One input module+one labeling module+UID Reading Module
Highly modular and flexible system design for ID or banking card production
Latest technology and know-how standards
High-quality industrial inkjet printing
LUK-DOD8000A
Designed for encoding the magnetic cards and chip cards followed by DOD UV printer to print the corresponding variable data onto the cards.
Two input modules (one for ISO card feeding, the other for non-standard card feeding )+ one labeling module
Highly modular and flexible system design for ID or banking card production
High-quality industrial inkjet printing
Front and backside processing in one pass

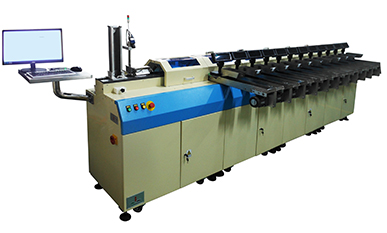

LUK-SC5000
Designed for sorting cards with different printing and different chip data inside the cards .
With machine vision system, it can sort the cards with difference face value, color, text, numbers, patterns , etc.
The sorting accuracy is ensured with the help of OCR checking and the machine can compare the printed data with the data base to ensure the data accuracy.
Standard model can sort upto 12 types of cards.More types of cards can be sorted in two passes or with more tracks on demand.
LUK-SC6000
Designed for sorting cards with different printing and different chip data inside the cards .
Supported for various smart cards conforming to ISO/IEC 7816 standard
Check both surface and internal information of the card by multi checking methods so as to ensure that the surface and internal information match with accurate sorting sequence
Adopting turntable output structure. Equipped with 2 output magazines ( capacity of 500 pcs) for sorted cards with auto-switch function; 1 pos-occupying card magzine&1 reject card magazine
LUK-CB802
Designed for bonding /welding the antenna and the module for circuit connection
Double pulse current welding technology is adopted for stable working performances and precise welding effect
Welding heads can be upto 8 , all the welding heads can work at the same time or respectively
Different layouts( 5x5, 5x12, 3x8,4x8) are available for this machine with great flexibility
CE completed safety guards
LUK-MAE10
Overlay Thickness：0.04-0.2mm
Layout:3×7/3×8/3×10/4×7/4×8/4×10 for optional
Welding Accuracy:±0.15mm
Tape application upto 10-12 meters/min
LUK-AEM216
Designed for embedding or implanting the copper wire onto INLAY middle sheet as per the designed track
Advanced ultrasonic wire embedding technology for good embedding result and high efficiency
Upto 16 Embedding heads can be designed
Upto 2 working stations/embedding groups can be available
LUK-CHP-6000Y
Designed for punching chip holes into the PVC/ABS/PETG sheets
Position holes and chip holes will be punched at the same time
One hole size for built-in chip module
Precise punching die and PLC servo system for good punching quality
LUK-AEM210
Designed for embedding or implanting the copper wire onto INLAY middle sheet as per the designed track
Advanced ultrasonic wire embedding technology for good embedding result and high efficiency
Upto 10 Embedding heads can be designed
Upto 2 working stations/embedding groups can be available
LUK-CHP-5000W
Designed for punching chip holes into the PVC/ABS/PETG sheets
Sheet layout is flexible, one same machine can be suitable for different layouts
Two different sizes of holes to make the position for same one chip for the thickness of contactless chips in the materialioning System
Output: Approx. 5000 pcs/hour
LUK-CP-3AH/4AH/5AH
Designed for high-volume production of PVC/PC Cards
Fully Automatic System with 8/25/32 card collecting magazines
CCD Visual Positioning for Precise Punching
Output: Approx. 16000-20000 cards per hour for 3x8 Layout
Easy Tool Changing
LUK-CB801
Designed for bonding /welding the antenna and the module for circuit connection
Double pulse current welding technology is adopted for stable working performances and precise welding effect
Welding heads can be upto 8 , all the welding heads can work at the same time or respectively
Different layouts( 5x5, 5x12, 3x8,4x8) are available for this machine with great flexibility
CE completed safety guards
LUK-CMP120
Designed for chip counting, chip initialization, chip pre-personalization, open & short test, reject chip punching and marking, etc.
Each module can work independently or be combined on demand
Max throughput 60,000 cph for 6PIN chip;Max. Throughput 45,000 cph for 8PIN chip
LUK-HCP5000
Designed for packing smart cards or leaflet + card in bulk
Continuous ultrasonic sealing mode for the elegant and tight sealing
Pack sealing edges can be zigzag, digits, letters or any personalized patterns
High speed, high stability, low noise and clear welded pattern
LUK-TDM800
Designed for dispensing the green tape onto back side of the hole-punched inlay middle material before placing the chips on the inlay sheets
Used for blocking chip holes to support chips
High accurate PLC servo system is adopted for precise material picking, glue tape placing, glue tape cutting & sheet collecting
This machine can be available for different sheet layout ,such as 5x5, 3x8, 4x8 layout ,etc.
LUK-SCP-3Y
Designed for automatic hole punching & ceasing from ISO standard card body or non-standard card body
Ceasing function is for easy break-up by hand
Two stations can be working at the same time, also can be working separately, very flexible
100% servo motor driven
LUK-CHS-8000D
Designed For Application Of Holograms, Signature Panels, Svratch-off Labels On Card Body
Available For Visa, Master, JCB, Union Pay, Rupay,etc.
Quick Change Tools
Highly Accurate Stamping Positioning System
For Visa, Master, JCB, Union Pay, Rupay,etc.
LUK-MP4000
Designed for precisely implanting the single chip onto chip fixing hole in the pvc sheet automatically after antenna embedding

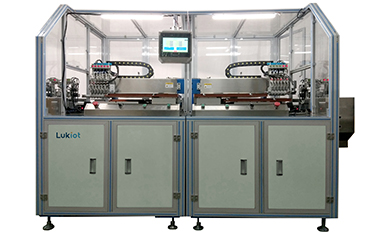

Vibration disc automatic feeding , positive or negative chip filling identification, automatic bad chip elimination
Double working stations and double placers can be working at the same time or separately
Different sheet layout , such as 5x5, 3x8, 4x8 layout ,etc. can be proceeded with the same machine
LUK-Smartlam1000 ecoLINE
Automatic transferrring from heating to cooling
Max. Laminate Plate size： 600X750mm
Daylights：10
Up to 350 sheets per hour
LUK-CP-3A/4A/5A
Automatic Sheet Feeding and Card Punching System
Optical sheet alignment & positioning system ensuring highest punching accuracy
Quick Change Tools
Available Layout: 3x8/4x8/5x5
Productivity: around 15000 cards per hour
LUK-DME5000
Compact system for in-line production of dual interface cards
Proven conductive glue technology developed for longest life time & easy handling
Equipment also suitable for milling & implanting of standard contact cards
Operator-friendly, flexible & modular system design
4,000 UPH (standard Smart Cards); 3,200 UPH (dual interface cards with conductive glue technology )
Partner & User
Social Networks :

E-Mail : trade_2@lukiot.com

TEL: +86 17366051013 （7*24 Hours Support）

Add: No. 228 Tianyuan East Road, Jiangning District, Nanjing City, China

Copyright@Nanjng Lukiot Technology Co.,Ltd. All Rights Reserved Designed By Wanhu
INQUIRY NOW
Contact us
*Name:
Company:
*Email:
*Tel:
Country:
*Message:
