PLASTIC CARD PRODUCTION
LUK-ASC-3000
Presentation: Semi Automatic ,  Ultrasonic Welding System
Advantage: Superior Quality, High precision and High stability
Application: Card Manufacturer
Brochure Download:Download
Contact Us
    Overview:

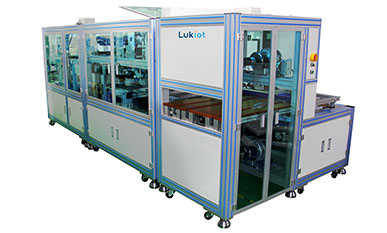

    Lukiot’s ASC-3000 is a semi-automatic sheet collating system.

    It mainly includes one sheet loading table, two sets of upper & lower position of overlay roll material unwind stand with air shaft & magnetic brake,sheet gathering & positioning , ultrasonic welding stations, cutting and
    output stacker, etc.

    The high precision optical collation process makes this machine suitable for contactless, dual interface and other high level cards such as ID or EMV Cards.


    Features:

    ￭ Semi-automatic Sheet Collating System for High Volumes

    ￭ Manual feeding & alignment to reference edges of core layers in sheet format
    ￭ Automatic feeding & positioning for overlay film from reel
    ￭ Automatic transport & cutting system
    ￭ High precision alignment by CCD vision system
    ￭ By using ultrasonic system, the result of spot welding is small & perfect
    ￭ Easy to adjust welding power , time & depth for different material thickness
    ￭ Easy to adjust the welding position for different size material
    ￭ Dust elimination device to clean both sides of the collated sheets before welding
    ￭ Easy set-up & maintenance
    ￭ Output: around 300 sets per hour, depending on material & layout

    Specification:

    Model LUK-ASC3000
    Suitable Material
    		PVC, ABS, PET, PETG, etc. ; Overlay film with glue or without glue
    Available Layout
    		 6x8 layout or 2 (3x8)


    Available Material Thickness

    		PVC : 0.07mm-0.40mm
    Inlay:0.05mm-1.5mm
    Overlay Film: 0.04mm-0.15mm
    Thickness after Spot Welding
    		 0.40mm-1.2mm
    Positioning Method
    		 OCR
    Accuracy
    		 ±0.15mm
    Welding Depth
    		 0.20-1.0mm
    Output
    		 Around 300 sets per hour( 2 films+ 3 pvc core)
    Air Source
    		 0.6 Mpa
    Power Supply
    		 220V, 50-60Hz, 5 KW
    Safety Device
    		 Equipped with 5 groups of operation bottoms with pause, initialization, start, and emergency stop bottom and safety switch.
    Operator
    		 One person
