PLASTIC CARD PRODUCTION

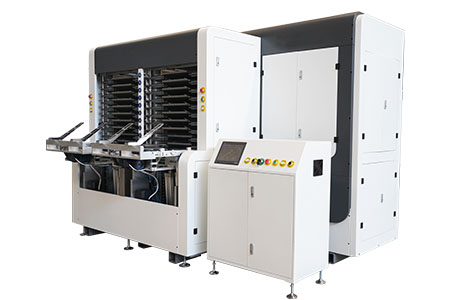

LUK-Smartlam1000 ecoLINE
Presentation: Fully Automatic Laminator for PVC & PC Volume Production
Advantage: Cost-effective, Accurate, Stable & Easy Operation
Application: Applicable for the safe and efficient lamination of a variety of contact and contactless cards
Brochure Download:Download
Contact Us
    Overview:

    Lukiot's ecoLINE laminating system is perfectly suited for PVC and PC volume production tasks. It is designed for the lamination of pre-lams, holder pages, and similar products such as plastic cards, smart cards, and contactless cards.


    The system complies with the latest demands regarding economics, sustainability as well as product and process quality. All important process parameters such as temperature, pressure and cycle time are controlled continuously. These features make it possible to laminate under optimal conditions with all current card materials such as ABS, PVC, PC, PET, PETG,PS and PP.

    The Smartlam1000 ecoLINE can be configured with ten openings and the system is capable of accommodating between six and twelve layers per opening, depending on the production material.


    Features:

    ￭Automatic, full-size sheet lamination system
    ￭Stable and reliable linear pushing device for automatic material transferring
    ￭Features the most accurate heating technology worldwide
    ￭Suitable for PVC & PC volume production
    ￭Intuitive human interface ensuring easy & efficient system & process handling
    ￭Optimized energy management system for environmentally friendly & cost-saving operation
    ￭Automatic looking for material vacancy, the human body engineering design of the tilt table and automatic turning sytem to make automatic more simple.
    ￭Improve the efficiency of the factory shift, the operator can set automatic and semi-automatic conversion flexibly.

    Specification:

    Model
    		 LUK-Smartlam1000 ecoLINE
    Heating Medium
    		 Electric
    Cooling Medium
    		 Water
    Control Method
    		 PLC
    Lamiantion Platen Size
    		 600x750mm
    Temperature Range
    		 0-200℃
    Temperature Precision
    		 ± 2℃
    Pressure Range
    		 0-16MPa
    Pressure Precision
    		 ±0.1mpa
    Daylight
    		 10
    Output
    		 Up to 350 sheets per hour
    Power Supply
    		380V, 50-60Hz, 73 Kw
    Dimension
    		 L3080* W2540* H2285mm
