PLASTIC CARD PRODUCTION

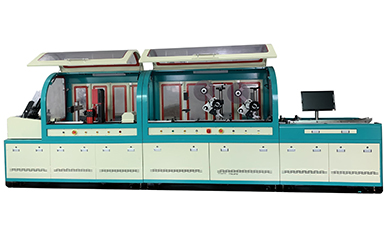

LUK-DOD7000A
Presentation: Best Price-performamce DOD UV Printing System
Advantage: Superior Quality, High precision and high stability
Application: Smart Card Manufacturer /Card Perso Center

Brochure Download:Download
Contact Us
    Overview:
    DOD UV printing system is designed for encoding the magnetic cards and chip cards followed by  UV printer to print the corresponding variable data onto the cards.

    This system provides modularity and flexible design which ?customers can select the function configuration on demands. The configuration includes card feeding, overlapped card detection, smart card chip encoding, magnetic strip encoding, plasma surface treatment, DOD UV Printing, LED dry, OCR visual inspect, labeling , bad card rejection ,etc.  The machine is available to support two magazines for different input systems( ISO cards & non-standard cards

    Features:

    ￭Two labeling units are available

    ￭Best price-performance ratio in the market

    ￭High-speed pre-/personalization system, technologies and / or special test processes
    ￭Most flexible individual process module development and integration
    ￭Latest technology and know-how standards
    ￭Suitable for customized personalization requirements
    ￭High-quality industrial inkjet printing
    ￭Front and backside processing in one pass
    ￭Easily upgradeable / switching of process module

    ￭Upto 7000 cards per hour


    Specification:

    Model
    		 DOD8000A
    Air Pressure
    		 0.6 Mpa
    Interface

    Serial port, ethernet port, electric eye,encoder interface, printer head interface

    Sensor
    		Support a variety of external sensors ( NPN type, contact type)
    Operating system
    		 Win7
    Paper accuracy
    		 Max. ±0.25mm
    Encoding Failure Rate
    		 <0.1%
    Power 380V, 15kw
    Machine Size
    		 6.65(L)x 0.85(W）x1.6(H)m
    Net Weight
    		 1200kg
