PLASTIC CARD PRODUCTION
LUK-PCM-12000

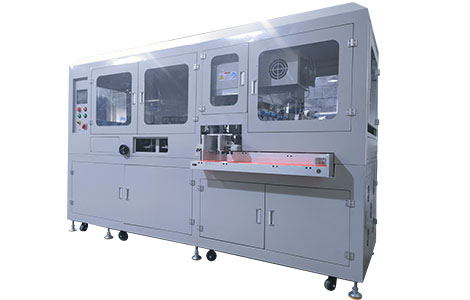

Presentation: Fully Automatic Playing Card Punching System
Advantage: High Speed, High Punching Precision, Stable Machine Performamces, Labor Saving

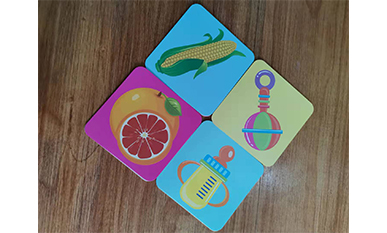

Application: For various kinds of playing cards prodcution , such as PVC Play Cards and Paper Play Cards, etc.
Brochure Download:Download
Contact Us

    Overview:
    Lukiot’s fully automatic play card punching system is  designed for the punching of play cards from sheets.

    The systems enable the high-quality production of play cards in order.


    The powerful servo motor systems ensure continuous precision with alignment to print sensor marks.

    The tools are well proven with an extremely long life time.


    The possibility to choose  3-up / 4-up / 5-up/6-up/7-up punching layouts  flexibility.
    The optimized design allows for a quick and easy tool change overtime.


    Features:

    ￭ Sheet Material: PVC, ABS, Paper,etc.
    ￭ Sheet Thickness: 0.3-1.0mm
    ￭ Sheet Thickness: 0.3-1.0mm
    ￭ The optical sensor registration mark tracking system with±0.1mm accuracy
    ￭ Low noise, low vibrations
    ￭ Shear-type male & female die sets for clean and smooth card edges
    ￭ Quick change tools


    Specifcation:

    Model
    		 LUK-PCM-12000
    Sheet Feeding
    		 Automatic
    Card Punching
    		 Automatic
    Skeleton Collating
    		 Automatic
    Number of Punches
    		 3 /4 /5/6/7
    Punching Precision
    		 ±0.1mm
    Sheet Alignment & System
    		 Optical Sensor
    Card Collecting Method
    		 Conveyor Belt
    Punching System
    		 PLC +Servo Motor
    Output
    		 1000 big sheets / hour
    Power
    		 380V/ 50-60Hz /10.5kw
    Gross Weight
    		 2000kg
    Gross Weight
    		 4000(L) x 1200(W) x 1750(H)mm
