PLASTIC CARD PRODUCTION
LUK-ASC5000
Presentation: Fully Automatic , Completely Flexible Sheet Collating System
Advantage: Superior Quality, High precision and High stability
Application: Card Manufacturer

Brochure Download:Download
Contact Us

    Overview:

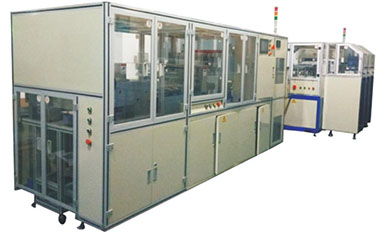

    Lukiot’s ASC-5000 is a fully automatic , completely flexible sheet collating system.
    Due to its modular design, the system can collate three core layers from the sheet and
    two overlays from the reel.

    It has unique flow design with antistatic devices to eliminate the static in the sheets
    and overlay to make sure the feeding smoothly. Applying the dust elimination device to
    clean both sides of the collated sheets.

    The high precision optical collation process makes this machine suitable for contactless,

    dual interface and other high level cards such as ID or EMV Cards.


    Features:

    ￭ Automatic high speed sheet collating system
    ￭ 3 feeding units for gathering top sheet, inlay sheet & bottom sheet
    ￭ Feeding of overlay from reel
    ￭ High precision alignment by vision systems
    ￭ By using ultrasonic system, the result of spot welding is small & perfect
    ￭ Easy to adjust welding power , time & depth for different material thickness
    ￭ Easy to adjust the welding position for different size material
    ￭ Dust elimination device to clean both sides of the collated sheets
    ￭ Flexible modular design, customer can add or remove each module
    ￭ Output: up to 1200 sets per hour, depending on material & layout

    Specification:

    Model
    		 LUK-ASC5000
    Suitable Material
    		 PVC, ABS, PET, PETG, etc.
    Available Layout
    		 Customized
    Available Material Thickness
    		 PVC Core or Inlay: 0.1mm-0.40mm
    Overlay Film: 0.04mm-0.10mm
    Thickness after Spot Welding 0.40mm-1.2mm
    Accuracy ±0.10mm
    Welding Depth 0.20-1.0mm
    Output Up to 1200 sets per hour
    Air Source
    		 0.6 Mpa
    Power Supply 380V, 50-60Hz, 12KW
    Operator One person
