PLASTIC CARD PRODUCTION
LUK-SC-3
Presentation: High Quality Sheet Collating Machine
Advantage: Precise, Stable & Easy Operation
Application:Applicable for  welding of plastic foils into sheets ready for lamination
Brochure Download:Download

Contact Us
    Overview:

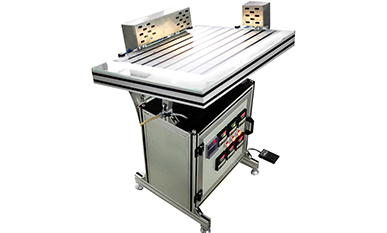

    SC-3 is designed for pre-fixing of plastic foils into sheets ready for lamination.

    A swivel table along with a vertically adjustment frame and a foot switch operation method make the equipment easy to use for any operator. The system is flexibly adjustable in height and table position and thus guarantees operator friendliness.

    The layers are manually aligned to reference edges and prefixed manually with an thermal welding unit.
    This allows for the simultaneous prefixing of a complete set in less than one second and for the setting of a random number of spots (max. 3 spots)

    After the collating process , the pre-fixed sheets are manually removed by the operator.


    Features:

    ￭ 3 sets of welding heads
    ￭ Max. Material size 450x650mm , suitable for PVC, PET material
    ￭ Easy to adjust the welding position for different size material
    ￭ It adopts the precision guide element and very durable heating elements system to ensure the working pressure
    efficiency
    ￭ Easy to adjust the welding time ,welding temperature and the welding depth for different thickness of material.
    ￭ It can fix magnetic strips and contactless inlays very well also.
    ￭ Completed CE safety guards

    Specification:

    Model LUK-SC-3
    Control Method
    		 Digital meter
    Sheet Material
    		 PVC ,ABS, PC or other plastic materials
    Sheet Size
    		 Max. 450x650mm
    Welding Head
    		 3 groups
    Collecting Thickness
    		 0.3-1.0mm
    Productivity
    		 600 sheets per hour
    Power
    		 AC220V 50-60HZ 650W
    Weight
    		 80kg
    Dimensions
    		 L580×W520×H800mm
