PLASTIC CARD PRODUCTION

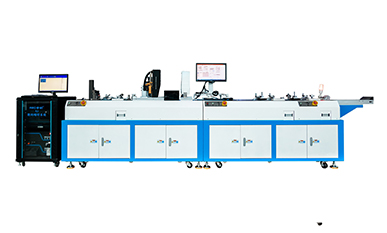

LUK-PL25000

Presentation:Automatic RFID Label Personalization Line
Advantage:Highest Level of Customization,Highest Application Flexibility,Easy Product Charge Over
Application: For Smart Labels in HF and UHF detecting ,encoding & personalization

Brochure Download:Download

Overview:

PL-25000 is suitable for the automatic encoding, UV ink-jet printing, detection, verify, card collection. And calibration of single label such as single hangtag, paper card, ticket card, etc. The double labels detection function which ensures accurate feeding, high-precision belt conveying and electric eye monitoring which ensure accurate conveying position. UV ink-jet printing is optional, will detect the effect of inkjet and content after UV inkjet printing. With multi station encoding, scanner and multi sets of readers to verify the IC information and QR code or IC information and bar code. Vision system for appearance checking is optional, which ensure the accuracy of RFID product.

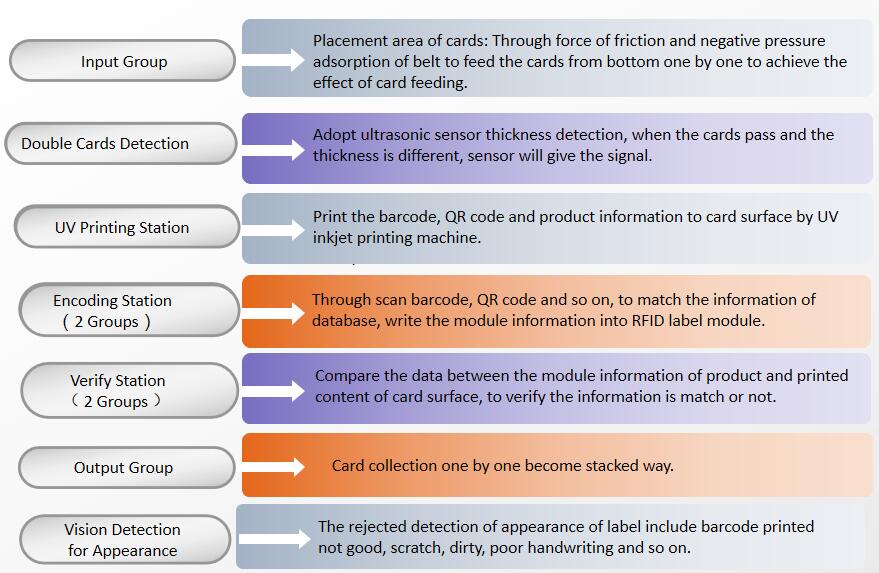

Machine Structure Overview:

Features:

￭Suit for automatic UV inkjet printing, encoding, detecting and verifying for single hangtag, card paper, ticket and other single label.
￭High-precision belt for transporting and sensor monitoring which ensure the exact transfer position.
￭Double cards detection function ensure cards feeding accuracy.
￭Double stations detection/encoding to ensure the accuracy and high speed for data detection.
￭Curing effect is good and high speed for UV inkjet.
￭Automatic reject the bad product.
￭Apperance detection for UV inkjet printing effect is optional ( Vision system is optional).
￭Scanner + two groups of readers to verify the IC information and QR code or IC information and bar code which ensure the accuracy of RFID product.

Advantages:

￭Similar equipment for code writing and reading, UV inkjet printing and detecting, UPH is most highest, up to 25K pcs/h.
￭High accuracy for UV inkjet printing position, up to±0.3mm.
￭Easy to operate, low standards for employees, changing product is fast.
￭HMI is friendly and easy to operate. Auto alarm and prompt message in HMI when machine has malfunction.
￭With good expansibility. Code writing and reading, UV inkjet printing and good and bad detection, scan detection, vision system to check appearance and other functions for chip is optional.
￭Our standard collection way is single unloader. Collection method can be switch to double unloader, single unloader or magazine.
￭With strong universality. Machine can produce woven label, hangtag, paper card and other products.
￭ Machine has emergency stop switch in different positions, can press it to stop machine when has urgent malfunction.
￭Each station can be tested module and adjusted individually, easy to change.

Model	LUK-PL25000
Width of material	25-100mm（Can be custom-made according to actual demand）

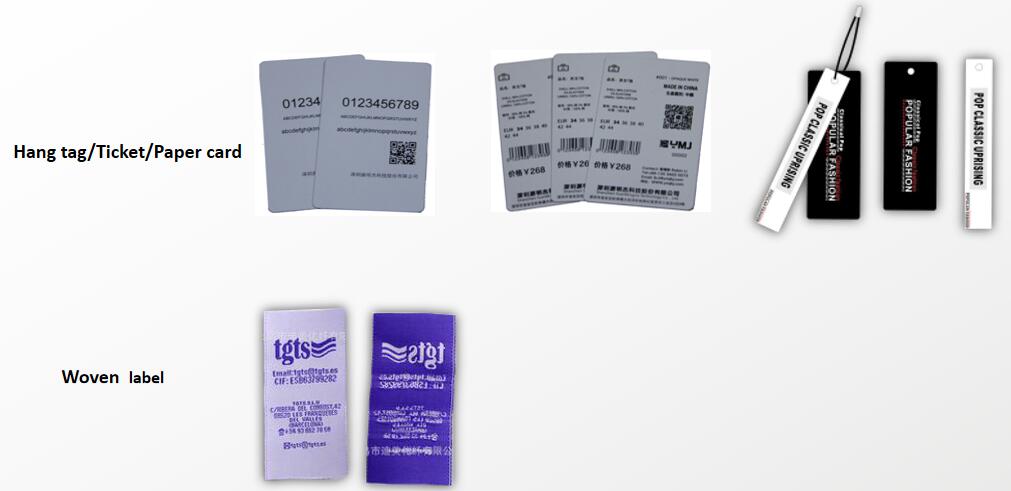

Application materials	Single hangtag, card paper, ticket ,etc.
Output	20K~25K pcs/h（According to UV inkjet printing accuracy setting different and material size different, then speed different)
idth of UV inkjet printing	Standard : 54mm (108mm is optional)
Control method	IPC
Accuracy of UV inkjet printing position	±0.3mm
Power	5KW
Power supply	AC 220V 50/60Hz 20A
Dimension of Machine	About L5650W710H1430mm
Weight	800kg
Pass rate	100%
