Card Punching

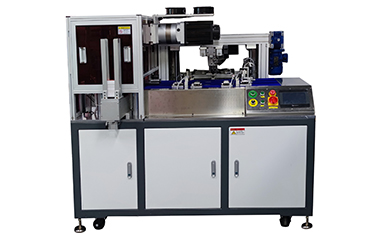

LUK-CP-3AJ/4AJ/5AJ
Presentation: Economic Design Automatic Card Punching Machine
Advantage: Flexible, Precise, Stable & Easy Operation
Application: Applicable for the punching of both shaped cards or ISO cards from sheets automatically
Brochure Download:Download
Contact Us
    Overview:
    This automatic card punching system CP-3AJ/4AJ/5AJ is designed for the punching of plastic cards from sheets. The system is suitable for medium to high-volume production of  shaped cards or standard ISO cards. The servo punching system ensures continuous precision with alignment to print mark and the tools are well-proven with an extremely long life cycle.  The optimized design allows for a quick and easy die change over time. Depending on configuration and material this system can reach a throughput of up to 15,000 cards per hour.

    Features：

    ￭Automatic sheet feeding & card punching
    ￭Optical sheet alignment & positioning system ensuring highest punching accuracy
    ￭In-house tool manufacturing assuring highest life-cycle of tools
    ￭Fast in-house regrinding service
    ￭Intuitive user interface for easy operation
    ￭Lowest footprint for limited production area

    ￭Solid machine design for high speed & high precision


    Specification：

    Suitable for
    		 0.3-1.0mm PVC or other plastic materials
    Punches
    		 3/4/5
    Max. Punching Strength
    		 0-5000 kg Adjustable
    Air Source
    		 0.6 MPa
    Air Consumption
    		 100 L/min
    Controlling Method
    		 PLC + Servo System
    Productivity
    		 Around 15000 cards/hour
    Power
    		 AC380V 50-60Hz 5.5KW
    Dimension
    		 L1700×W1080×H1450mm
    Gross Weight
    		 Approx.1,200 KGS
