PLASTIC CARD PRODUCTION
LUK-CM-90N ( Narrow Web)
Presentation:Automatic & Flexible Label Converting Solution
Advantage:Highest Level of Customization,Highest Application Flexibility,Easy Product Charge Over
Application:Smart Labels & Smart Tickets From reel-to-reel or From reel-to-ticket

Brochure Download:Download
Contact Us
    Overview:

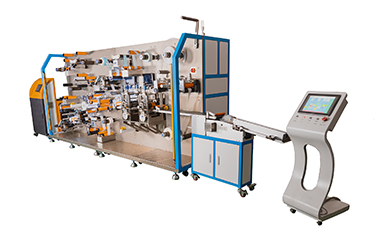

    CM-90N Converting Line represents a flexible, fast and modular concept for a high range of converting possibilities: Smart Labels and Smart Tickets from reel-to-reel or from reel-to-ticket/fanfold. Various input materials like dry inlay, wet inlay and even compensation layers (4-layer) can be processed. All processes are in one platform: reel-to-reel antenna web handling, label/ticket lamination, die cutting as well as output testing – of course, with leading edge performance, state of the art quality and the best cost/performance ratio available on the market. It is perfectly suited for high-volume RFID Label and Ticket production, where the issues of fast change-over times and high quality are taken into account.

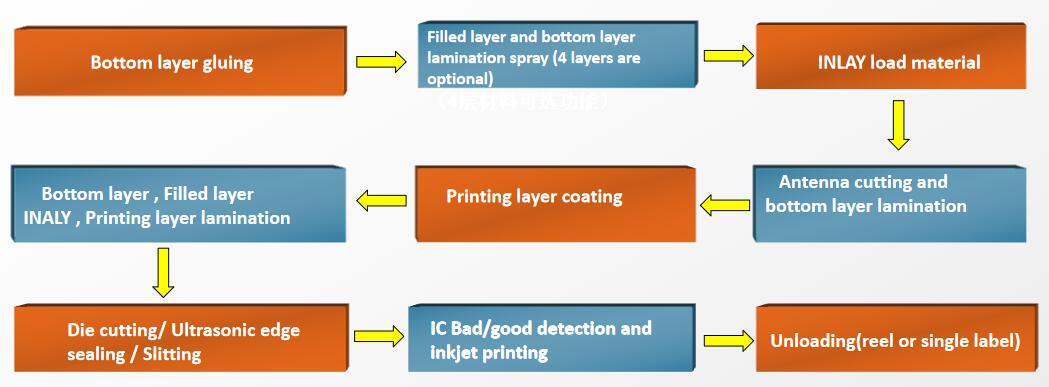

    Working Process:

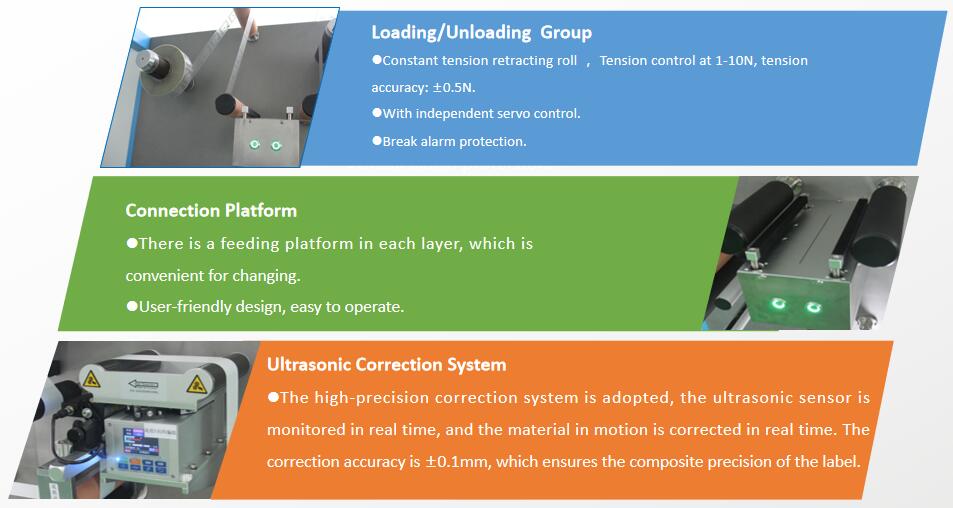

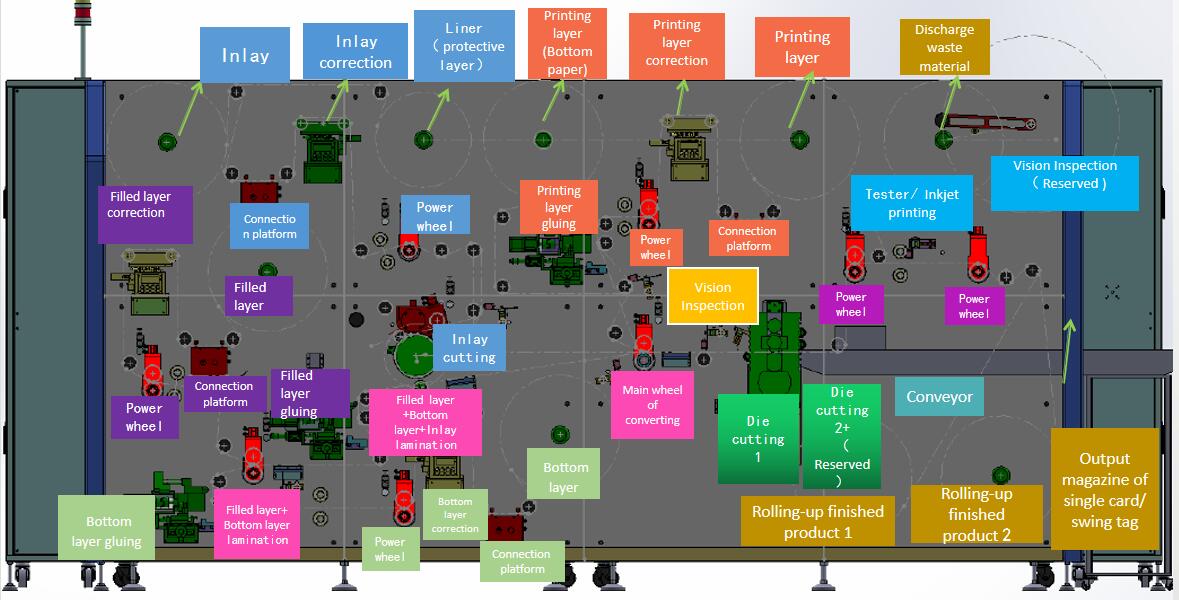

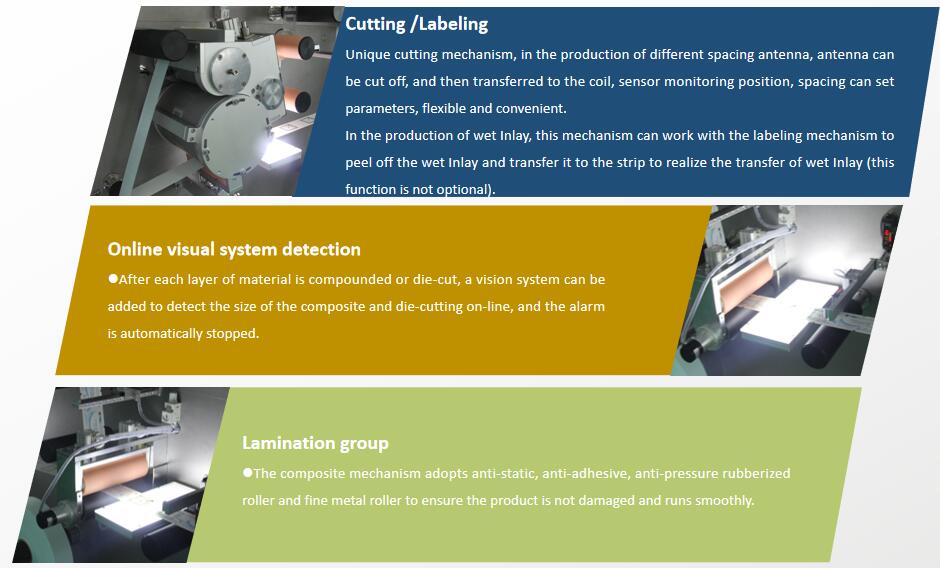

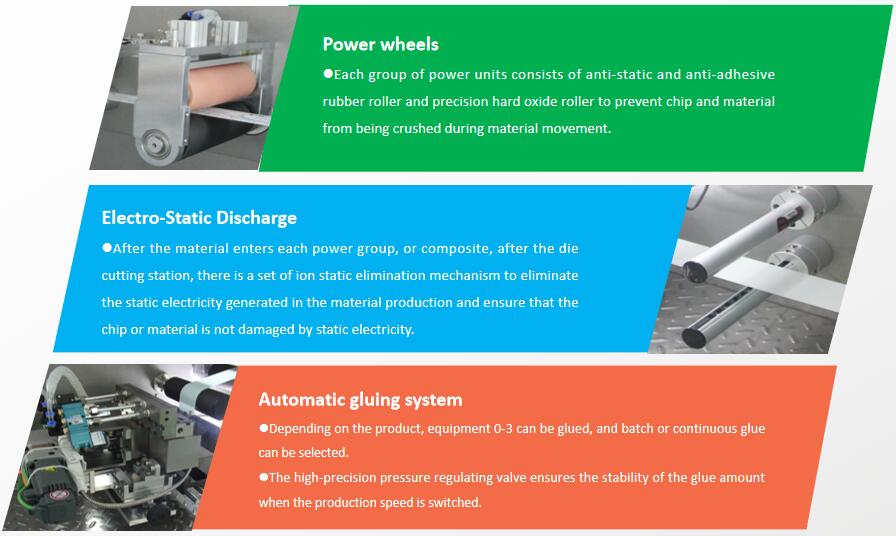

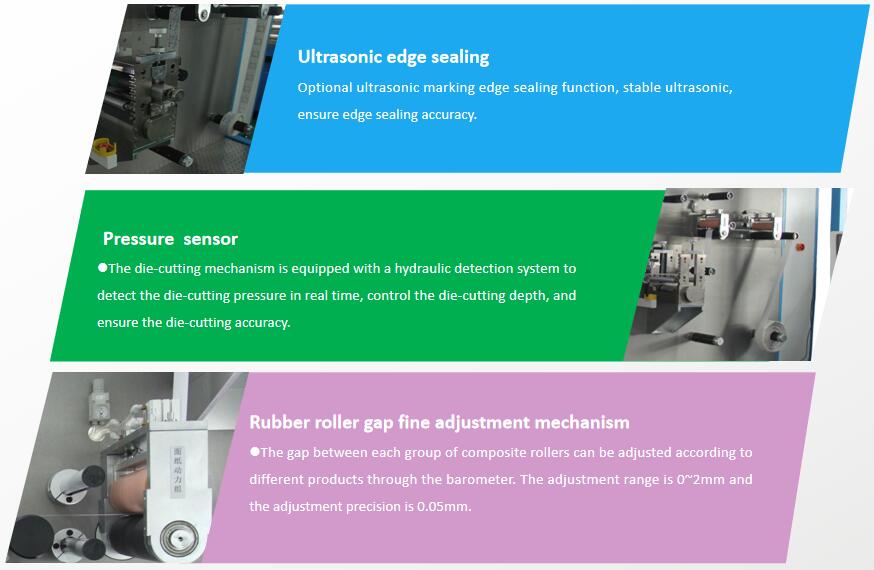

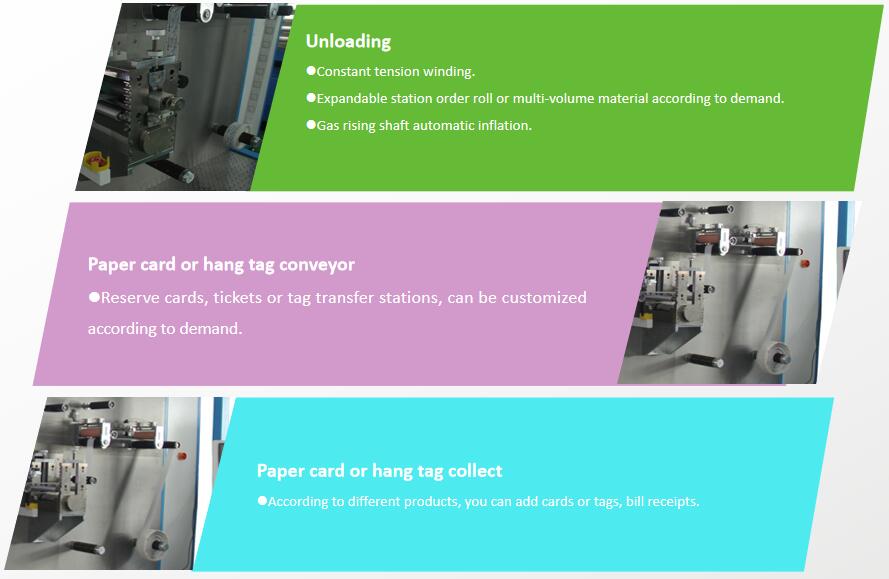

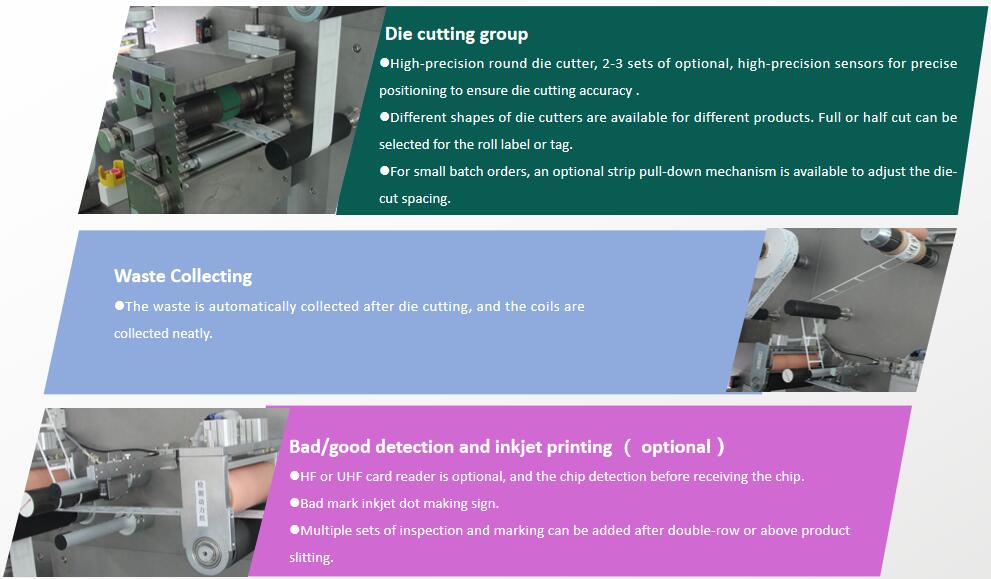

    Fuctional Structure Description:





    Features:

    ￭Designed for label converting and die cutting, 2 layers or 4 layers of roll to roll dry and wet inlay converting with label is optional.

    ￭Inlay converting and die cutting with balance or imbalance printing layer just need to setting in software.
    ￭It integrated of online gluing, converting, die cutting ,woven label ultrasonic sealing, and testing all in one.
    Suitable for reel label 、paper card、 hang tag、fan fold card、woven label and baggage tags and other product production.
    ￭The solution of full auto modular system and multi-axis system which equip with Multi-axis synchronization function.
    ￭Module configuration is reasonable, flexible and humanized combination.

    ￭Machine has multi unit of tension and deviation correction systems which ensure the edges neatly, high output, high quality and high accuracy production for different products.

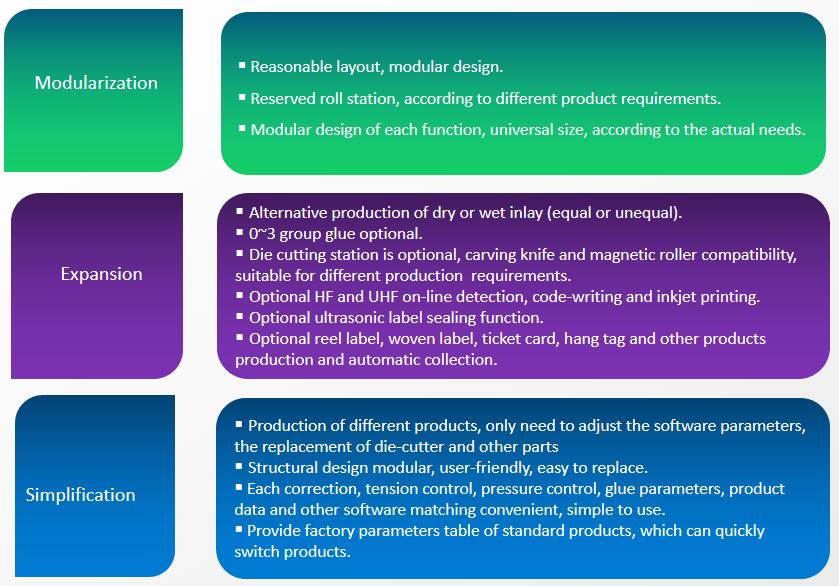

    Advantages:



    Specification:

    Model LUK-CM-90N
    Controlling System Bus control（Drive control integration）
    Width of Material (Label converting)
    		 20~180mm
    Application Materials
    		 Dry/wet inlay(different sizes)
    UPH
    		Reel label：same pitch：about 60~70m/min ,different pitch：about 40~50m/min ;
    Hang tag：same pitch：about 40m/min ,different pitch：about 30~40m/min Baggage tag：about 30m/min ;
    Woven label：same pitch：about 60m/min , different pitch：about 40~50m/min
    Percent of pass
    		 about 99.7%
    Lamination accuracy
    		 ±0.3mm~0.5mm（According to different products and different production mode）
    Die cutting accuracy
    		 ±0.3mm~0.5mm（According to different products and different production mode）
    Capacity of hot melt glue machine
    		 35KG
    Max. diameter of roll material Max
    		 Max.600mm
    Air Pressure
    		 6KG/CM²
    Air consumption
    		 About 300L/MIN
    Power Supply AC380V 50/60HZ 35KW
    Overall Dimension
    		 L4820*W1230*H2200mm
    Net Weight About 2500kg
    Slitting Optional

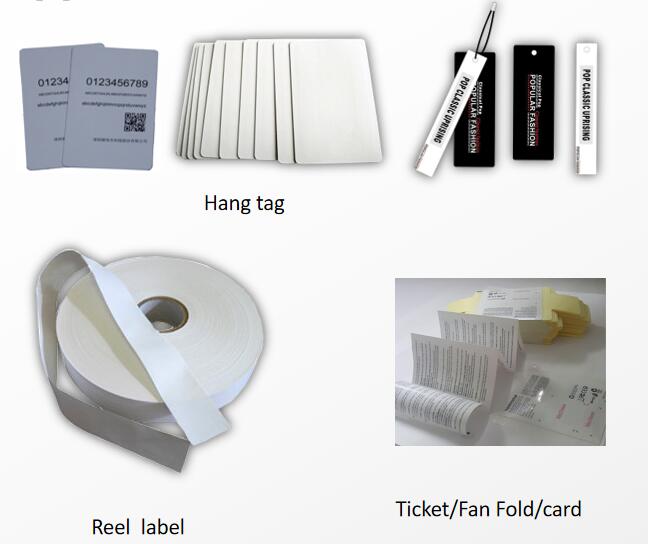

    Applications:
