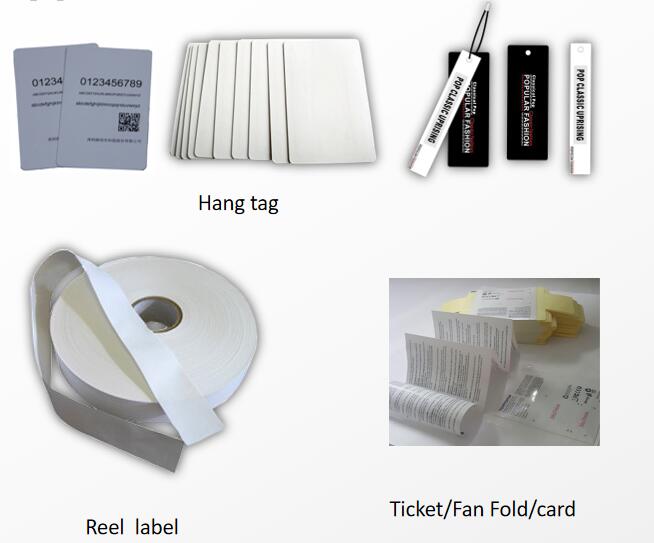

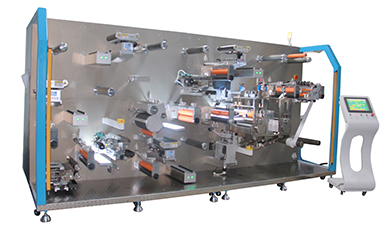

Thanks to the modular platform of our converting line family, the CL-90W system is characterized by a successful combination of cost-efficient production and highest flexibility paired with the highest speed and perfect product quality. Smart labels, smart tickets, baggage tags, hangtags and wet inlays can be processed from reel-to-reel or reel-to-ticket. Due to its 100% output control the converting system is perfectly suitable for mid- and high volume production. To gain higher productivity the machine can operate in wide web application.

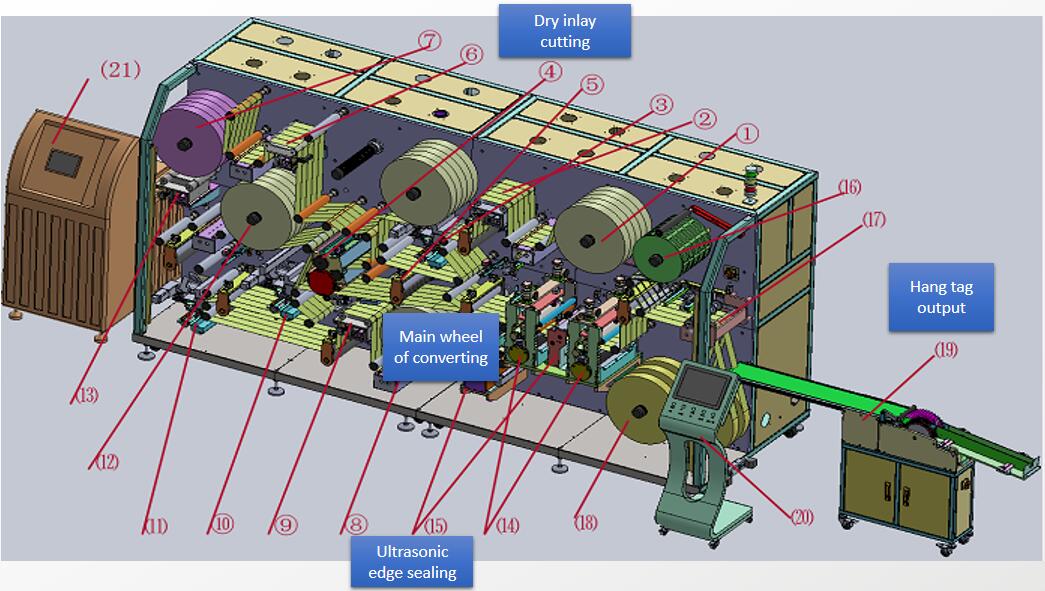

Function Module Description:

1) Printing  layer loading          2) Printing  layer correction        3) Printing  layer gluing        4) Inlay cutting
5) Alignment and lamination   6) Correction                                7) Inlay loading                     8) Bottom layer loading
9) Bottom layer correction      10) Filled layer gluing                  11) Bottom layer gluing        12) Filled layer loading

13) Filled layer correction        14) Die cutting A & B                  15) Ultrasonic edge sealing  16) Discharge waste material
17) Roll material slitting          18) Rolling-up finished product  19)Hang tag output               20) HMI

21) Hot melt glue box

Main Configurations:

Features:

￭Strong versatility, compatible with single-lane or multi-lane, reel label, hang tag, production;
￭Simple operation, low requirements for employees, quick product switching;
￭Friendly HMI interface, easy to operate and alarm automatic;
￭Flexible machine, high compatibility, according to the need to compound 2-4 labels. Optional 0-3 groups of adhesive.
￭Strong expansibility, optional chip quality detection function, vision system, cutting mechanism, die cutting and other functions
￭Material collection can be optional reel label, hang tag.
￭According to different product requirements, the material width, narrow range is optional.
￭The machine has many emergency stop switches, which can be pressed to stop the machine in time in case of emergency.
￭Single station independent test module, easy to adjust and replace;

￭The machine is equipped with safety grating and protective cover, eu CE standard, to protect the safety of personnel

Specification:

Application:

￭ Ordinary paper of RFID lamination.
￭ Hand-tag RFID lamination.
￭ Care-label RFID lamination.
￭ Dry inlay & wet inlay lamination.
￭ Cutting function for dry inlay.
￭ Finish paper and body paper automatically alignment laminated.
￭ From the type of silicone oil body paper can be used as body paper.
￭Double side adhesive label lamination.
￭ Standard adhesive label lamination: Label body paper & finish paper split – laminating inlay- Three layers label lamination.
